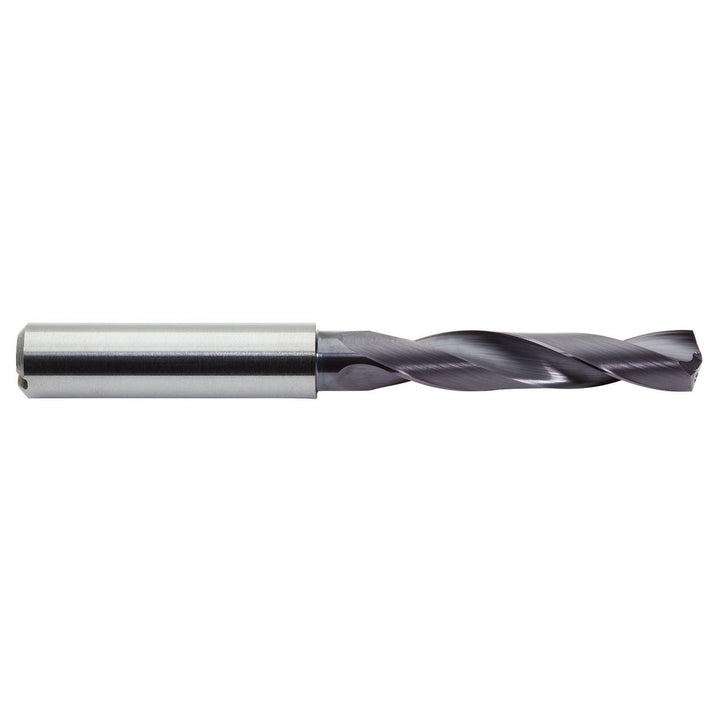

#31 Solid Carbide Drill Bit, ALtima; Titanium Nitride, 142° point - M.A. Ford. 2XDCS1200A

M.A. Ford.

#31 Solid Carbide Drill Bit, ALtima; Titanium Nitride, 142° point - M.A. Ford. 2XDCS1200A

MFR# 2XDCS1200ASeries 2XDCS

$89.74List $109.69 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 2XDCS1200A is a #31 Solid Carbide drill bit with a ALtima; Titanium Nitride finish, 142° point. Suited for temp alloy. 3/4 flute length, 2-1/4 overall length. Series 2XDCS.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit finish coatingALtima; Titanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.1200
Drill bit size range0.1000 - 0.1500
Drill bit size wire#31
Drill point angle degrees142
Drill point length0.0190
Flute by diameter ratio3xD
Flute length in3/4
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth0.6000
Number of flutes2
Overall length in2-1/4
Primary workpiece materialTemp Alloy
Shank diameter in1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
