M.A. Ford.

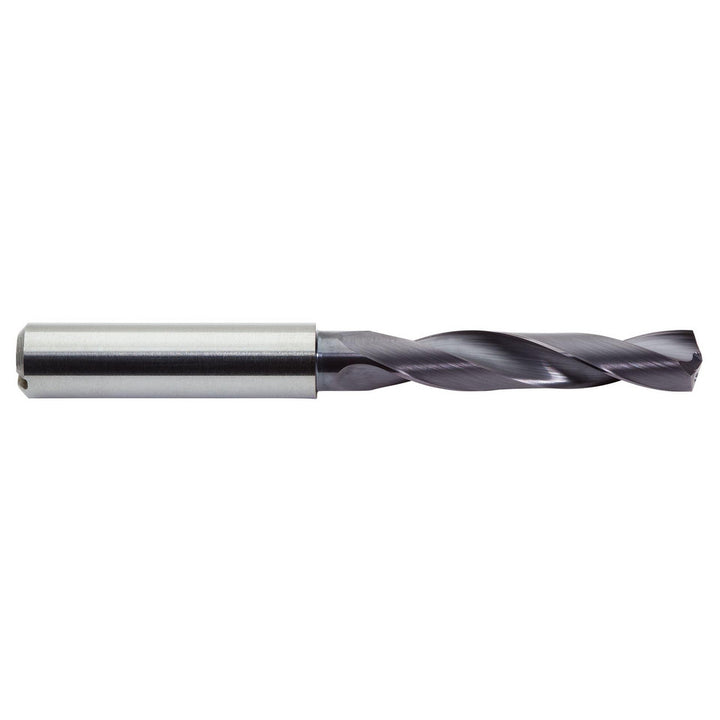

#30 Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCS1285A
MFR# 2XDCS1285ASeries 2XDCS
$107.01List $124.07
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima
Description
The M.A. Ford. 2XDCS1285A is a #30 Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy. 7/8 flute length, 2-1/2 overall length. Series 2XDCS.
Specifications
Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit materialSolid Carbide
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees142
Drill point length0.0200
Flute by diameter ratio3xD
Flute length in7/8
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth0.7000
Number of flutes2
Overall length in2-1/2
Primary workpiece materialTemp Alloy
Shank diameter in5/32
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
