M.A. Ford.
Letter G Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCS2610A
MFR# 2XDCS2610ASeries 2XDCS
$110.36List $134.89
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima
Description

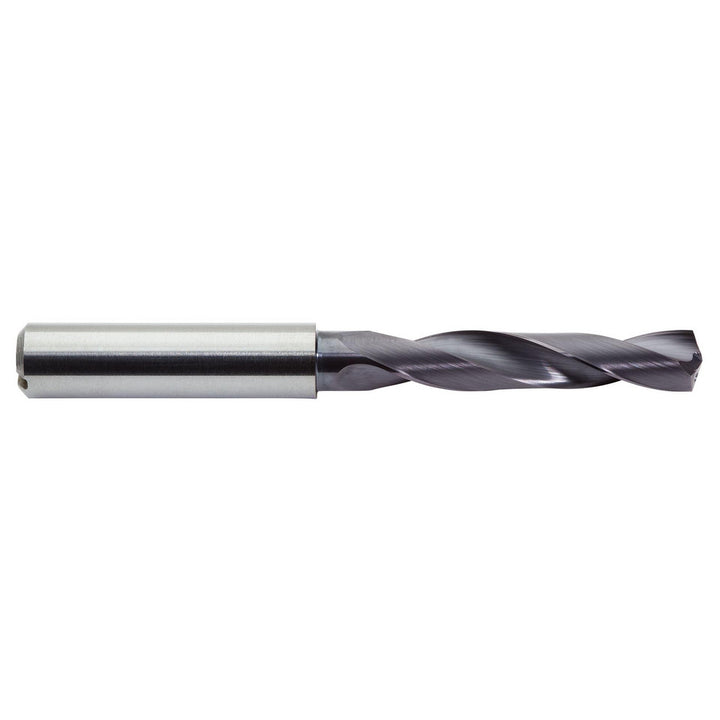

The M.A. Ford. 2XDCS2610A is a Letter G Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy. Series 2XDCS.
Specifications
Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00059 in
Drill bit materialSolid Carbide
Drill bit size0.2610
Drill bit size letterG
Drill bit size range0.2500 - 0.3000
Drill point angle degrees142
Drill point length0.0400
Flute by diameter ratio3xD
Flute length1.3390
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth0.9500
Number of flutes2
Overall length3.1100
Primary workpiece materialTemp Alloy
Shank diameter in5/16
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
