M.A. Ford.

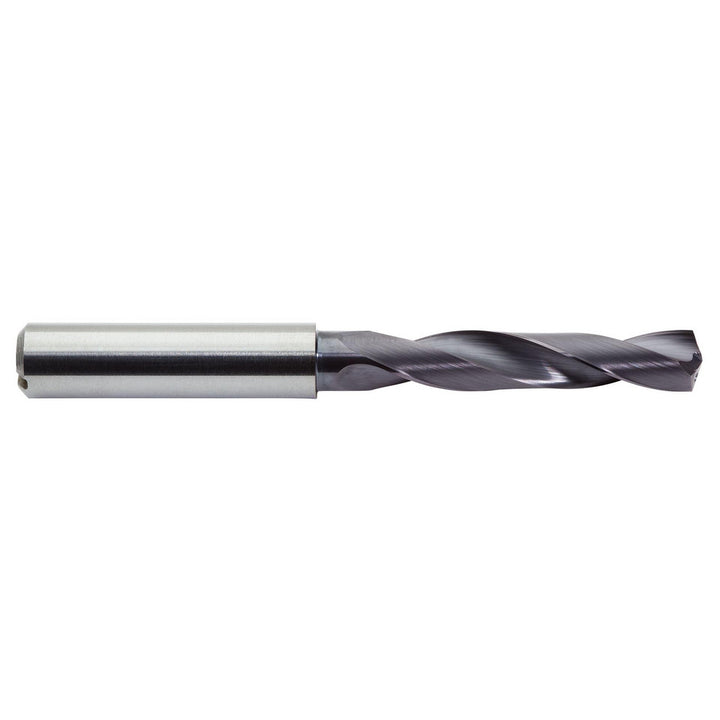

0.2756" Solid Carbide Drill Bit, ALtima; Titanium Nitride, 142° point - M.A. Ford. 2XDCS2756A
MFR# 2XDCS2756ASeries 2XDCS
$110.36List $134.89
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 2XDCS2756A is a 0.2756" Solid Carbide drill bit with a ALtima; Titanium Nitride finish, 142° point. Suited for temp alloy. Series 2XDCS.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.015 mm
Drill bit finish coatingALtima; Titanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.2756
Drill bit size range0.2500 - 0.3000
Drill point angle degrees142
Drill point length (mm)1.08
Flute by diameter ratio3xD
Flute length1.3386
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth (mm)24.00
Number of flutes2
Overall length3.1102
Primary workpiece materialTemp Alloy
Shank diameter0.3150
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
