M.A. Ford.

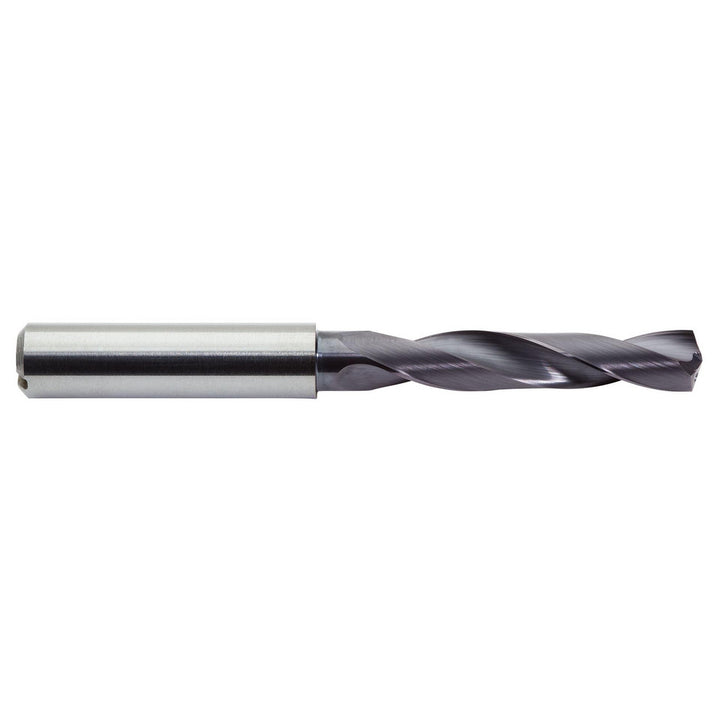

9/32" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCS2812A
MFR# 2XDCS2812ASeries 2XDCS
$130.65List $159.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
CoatingALtima
Description
The M.A. Ford. 2XDCS2812A is a 9/32" Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy. Series 2XDCS.
Specifications
Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00059 in
Drill bit materialSolid Carbide
Drill bit size in9/32
Drill bit size range0.2500 - 0.3000
Drill point angle degrees142
Drill point length0.0440
Flute by diameter ratio3xD
Flute length1.6140
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth1.1400
Number of flutes2
Overall length3.1100
Primary workpiece materialTemp Alloy
Shank diameter in5/16
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
