M.A. Ford.

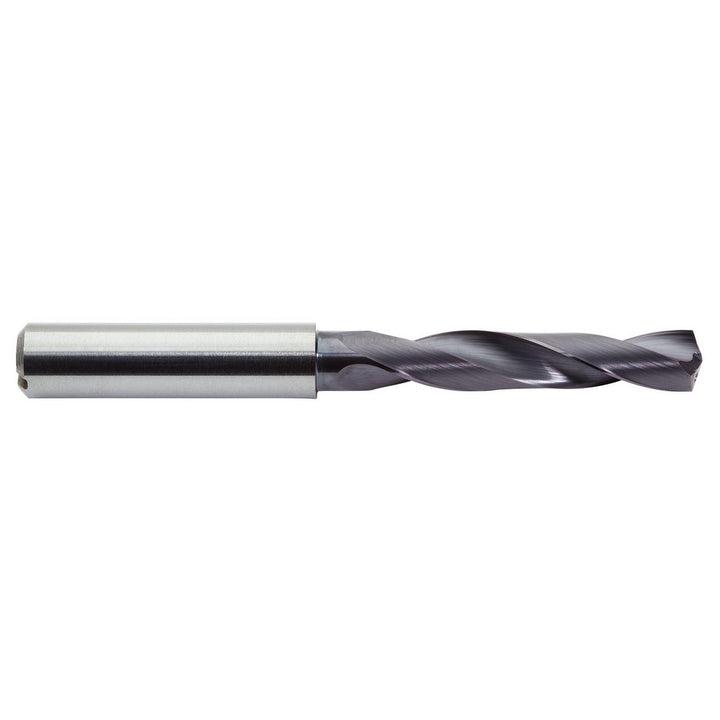

7/16" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCS4375A
MFR# 2XDCS4375ASeries 2XDCS
$244.87List $299.72
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
CoatingALtima
Description
The M.A. Ford. 2XDCS4375A is a 7/16" Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy. Series 2XDCS.
Specifications
Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit materialSolid Carbide
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees142
Drill point length0.0680
Flute by diameter ratio3xD
Flute length2.1650
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth1.5750
Number of flutes2
Overall length4.0160
Primary workpiece materialTemp Alloy
Shank diameter in15/32
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
