M.A. Ford.

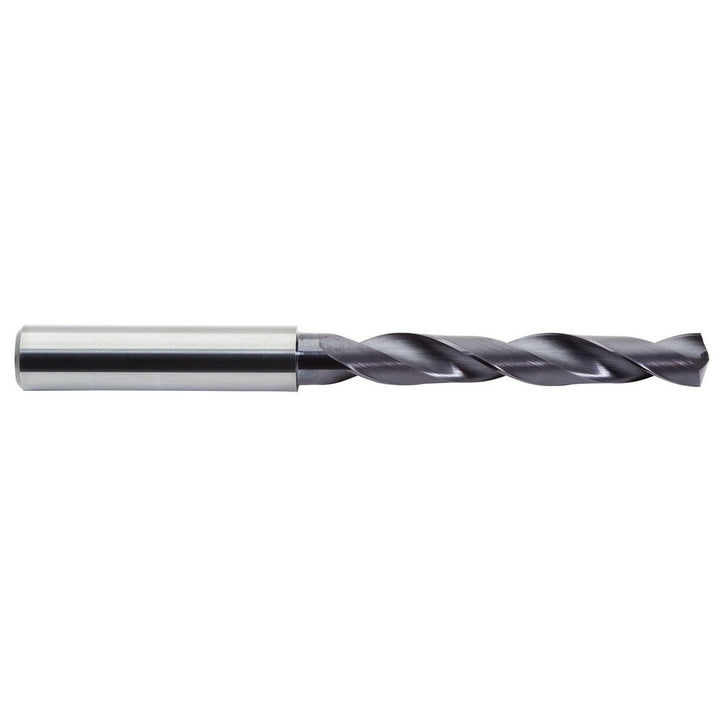

1/16" Solid Carbide Drill Bit, 142° point - M.A. Ford. 2XDSR0625A
MFR# 2XDSR0625ASeries 2XDSR
$41.08List $50.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
Description
The M.A. Ford. 2XDSR0625A is a 1/16" Solid Carbide drill bit, 142° point. Suited for temp alloy, titanium. Series 2XDSR.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00039 in
Drill bit materialSolid Carbide
Drill bit size in1/16
Drill point angle degrees142
Drill point length0.0100
Flute by diameter ratio5xD
Flute length0.7500
Flute typeSpiral
Maximum drilling depth0.5620
Number of flutes2
Overall length1.5000
Point typeStandard
Primary workpiece materialTemp Alloy; Titanium
Shank diameter0.0625
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
