M.A. Ford.

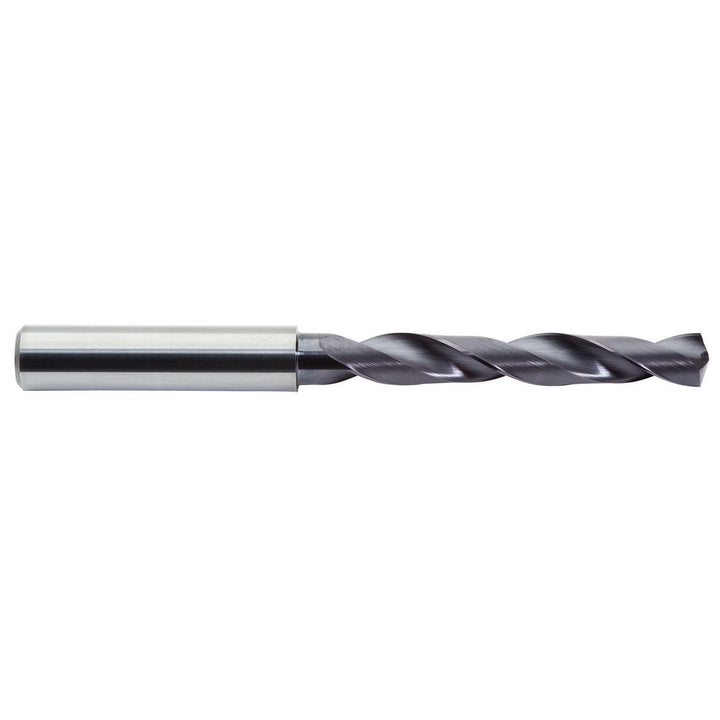

0.0708" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR0708A
MFR# 2XDSR0708ASeries 2XDSR
$44.38List $54.24
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 2XDSR0708A is a 0.0708" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for temp alloy, titanium. Series 2XDSR.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit finish coatingALtima; Titanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.0708
Drill bit size range0.0500 - 0.1000
Drill point angle degrees142
Drill point length (mm)0.28
Flute by diameter ratio5xD
Flute length0.8661
Flute typeSpiral
Maximum drilling depth (mm)17.00
Number of flutes2
Overall length1.8110
Point typeStandard
Primary workpiece materialTemp Alloy; Titanium
Shank diameter0.0708
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
