M.A. Ford.
0.0807" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDSR0807A
MFR# 2XDSR0807ASeries 2XDSR
$50.57List $61.89
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima
Description

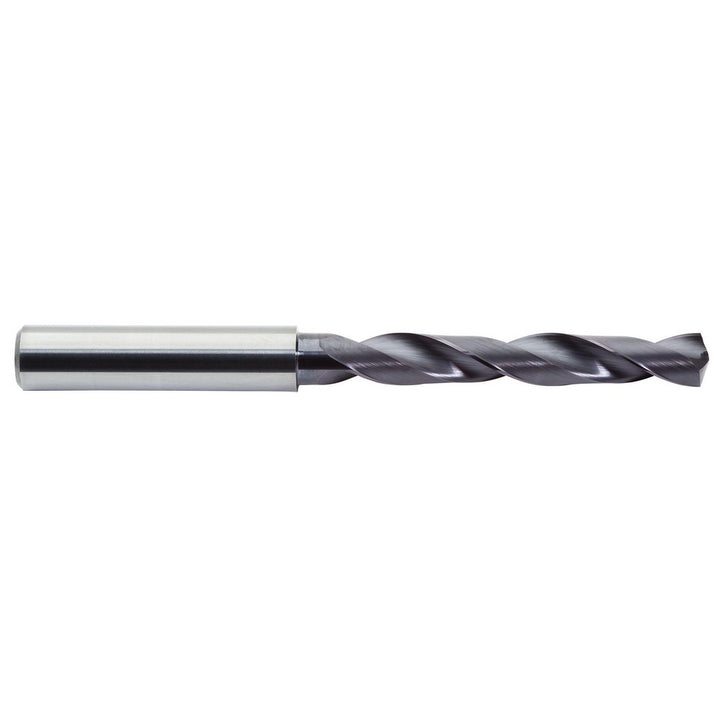

The M.A. Ford. 2XDSR0807A is a 0.0807" Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy, titanium. Series 2XDSR.
Specifications
Coating finishALtima
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit materialSolid Carbide
Drill bit size0.0807
Drill bit size range0.0500 - 0.1000
Drill point angle degrees142
Drill point length (mm)0.32
Flute by diameter ratio5xD
Flute length0.9449
Flute typeSpiral
Maximum drilling depth (mm)18.00
Number of flutes2
Overall length1.9291
Point typeStandard
Primary workpiece materialTemp Alloy; Titanium
Shank diameter0.0807
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
