M.A. Ford.

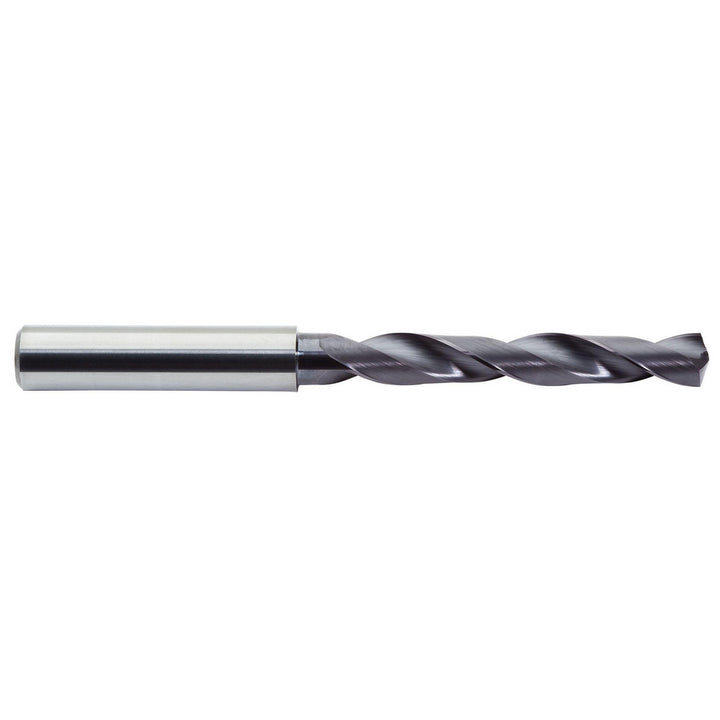

3/32" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDSR0938A
MFR# 2XDSR0938ASeries 2XDSR
$58.71List $68.07
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/32
Flutes2
CoatingALtima
Description
The M.A. Ford. 2XDSR0938A is a 3/32" Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy, titanium. 1 flute length, 2 overall length. Series 2XDSR.
Specifications
Coating finishALtima
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00039 in
Drill bit materialSolid Carbide
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees142
Drill point length0.0150
Flute by diameter ratio5xD
Flute length in1
Flute typeSpiral
Maximum drilling depth0.7500
Number of flutes2
Overall length in2
Point typeStandard
Primary workpiece materialTemp Alloy; Titanium
Shank diameter in3/32
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
