M.A. Ford.

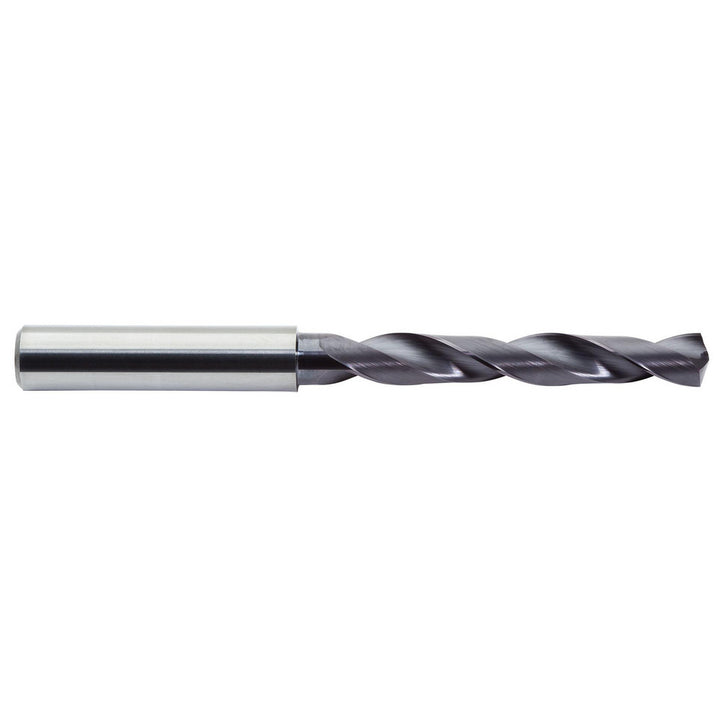

#31 Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDSR1200A
MFR# 2XDSR1200ASeries 2XDSR
$78.86List $91.43
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima
Description
The M.A. Ford. 2XDSR1200A is a #31 Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy, titanium. 1-1/8 flute length, 2-1/2 overall length. Series 2XDSR.
Specifications
Coating finishALtima
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit materialSolid Carbide
Drill bit size0.1200
Drill bit size range0.1000 - 0.1500
Drill bit size wire#31
Drill point angle degrees142
Drill point length0.0190
Flute by diameter ratio5xD
Flute length in1-1/8
Flute typeSpiral
Maximum drilling depth0.9000
Number of flutes2
Overall length in2-1/2
Point typeStandard
Primary workpiece materialTemp Alloy; Titanium
Shank diameter in1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
