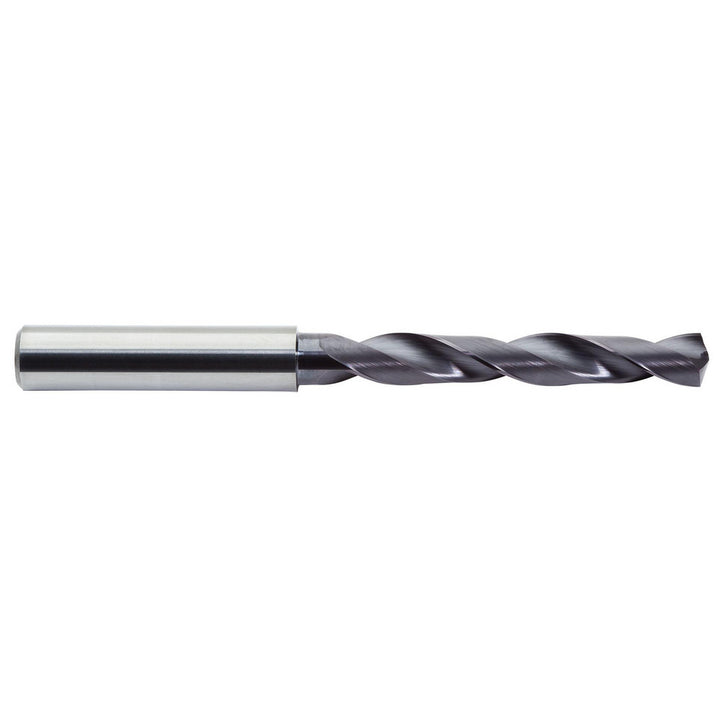

3/16" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR1875A

M.A. Ford.

3/16" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR1875A

MFR# 2XDSR1875ASeries 2XDSR

$85.63List $104.81 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2
CoatingAlTiN

Description

The M.A. Ford. 2XDSR1875A is a 3/16" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. 1-1/2 flute length. Series 2XDSR.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees142
Drill point length0.0290
Flute by diameter ratio5xD
Flute length in1-1/2
Flute typeRegular Spiral
Maximum drilling depth2.1875
Number of flutes2
Overall length3.1500
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter in3/16
Shank typeStraight
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
