M.A. Ford.
5.10mm Solid Carbide Drill Bit, 142° point - M.A. Ford. 2XDSR2008A
MFR# 2XDSR2008ASeries 2XDSR
$96.10List $123.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

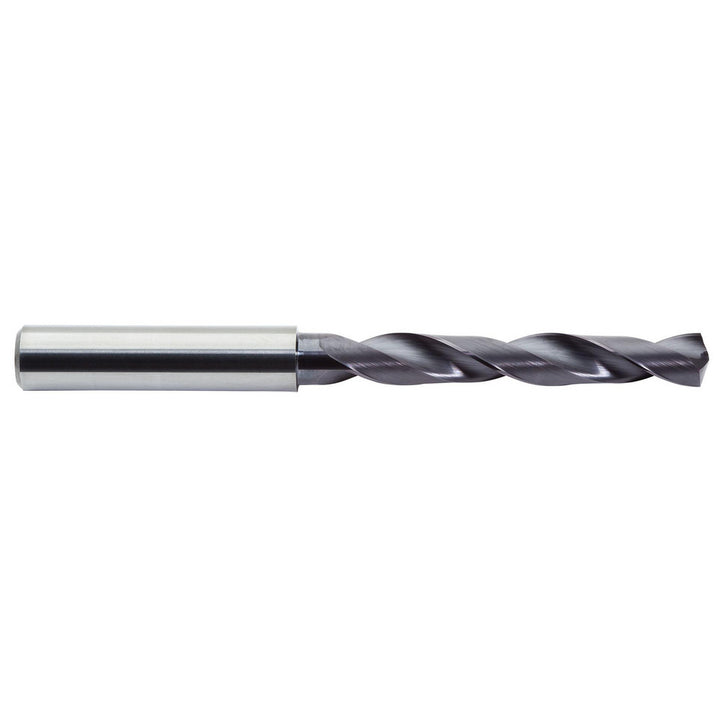

The M.A. Ford. 2XDSR2008A is a 5.10mm Solid Carbide drill bit, 142° point. Suited for temp alloy, titanium. Series 2XDSR.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.008 mm
Drill bit materialSolid Carbide
Drill bit size (mm)5.10
Drill point angle degrees142
Drill point length (mm)0.79
Flute by diameter ratio5xD
Flute length (mm)40.00
Flute typeSpiral
Maximum drilling depth (mm)32.00
Number of flutes2
Overall length (mm)82.00
Point typeStandard
Primary workpiece materialTemp Alloy; Titanium
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
