M.A. Ford.

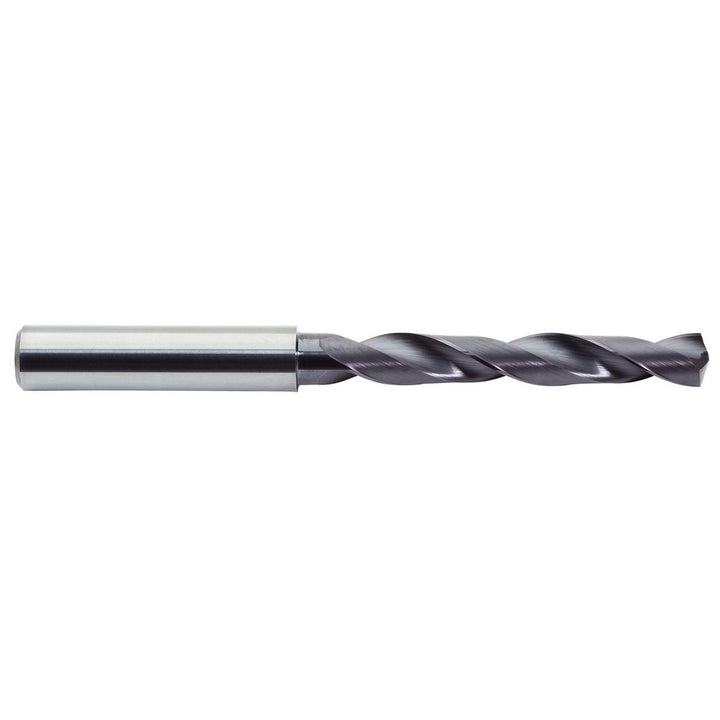

0.2283" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR2283A
MFR# 2XDSR2283ASeries 2XDSR
$91.65List $112.03
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 2XDSR2283A is a 0.2283" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDSR.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2283
Drill bit size range0.2000 - 0.2500
Drill point angle degrees142
Drill point length (mm)0.90
Flute by diameter ratio5xD
Flute length1.5748
Flute typeRegular Spiral
Maximum drilling depth (mm)32.00
Number of flutes2
Overall length3.2283
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter0.2362
Shank typeStraight
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
