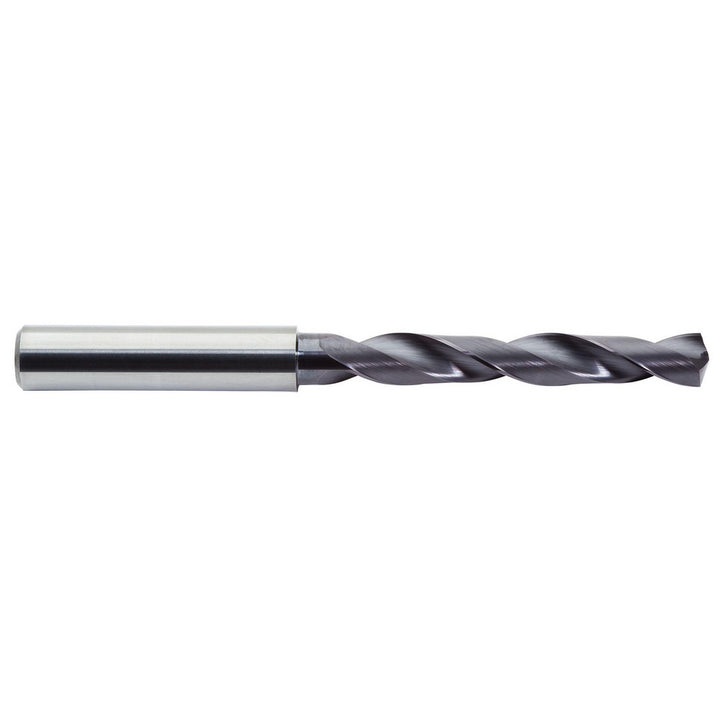

1/4" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR2500A

M.A. Ford.

1/4" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR2500A

MFR# 2XDSR2500ASeries 2XDSR

$97.46List $119.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/4
Flutes2
CoatingAlTiN

Description

The M.A. Ford. 2XDSR2500A is a 1/4" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDSR.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.00059 to 0.00000 in; -0.012 to 0.000 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in1/4
Drill bit size range0.2500 - 0.3000
Drill point angle degrees142
Drill point length0.0390
Flute by diameter ratio5xD
Flute length1.7400
Flute typeRegular Spiral
Maximum drilling depth1.3900
Number of flutes2
Overall length3.2500
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter in1/4
Shank typeStraight
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
