M.A. Ford.

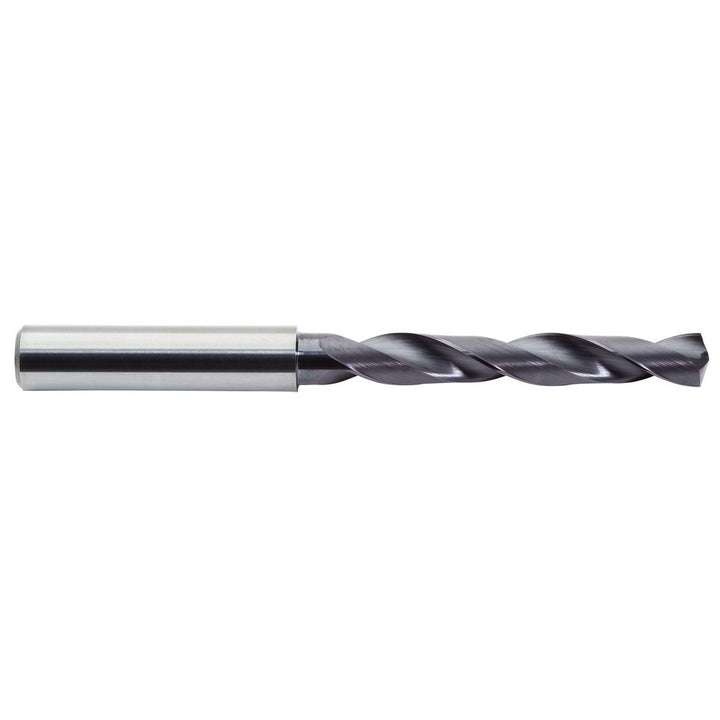

21/64" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR3281A
MFR# 2XDSR3281ASeries 2XDSR
$159.76List $195.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/64
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 2XDSR3281A is a 21/64" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for temp alloy, titanium. Series 2XDSR.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00059 in
Drill bit finish coatingALtima; Titanium Nitride
Drill bit materialSolid Carbide
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees142
Drill point length0.0510
Flute by diameter ratio5xD
Flute length2.1700
Flute typeSpiral
Maximum drilling depth1.7400
Number of flutes2
Overall length4.0600
Point typeStandard
Primary workpiece materialTemp Alloy; Titanium
Shank diameter in25/64
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
