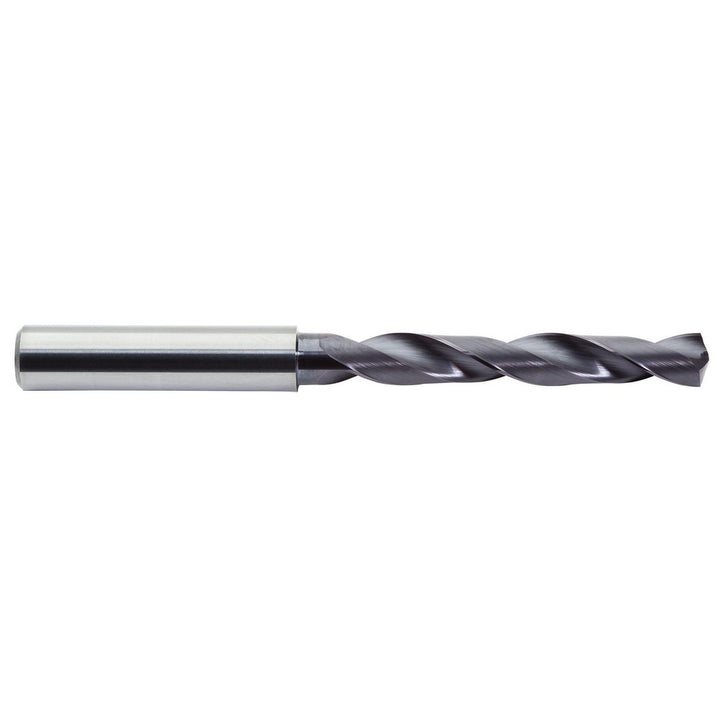

27/64" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR4219A

M.A. Ford.

27/64" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR4219A

MFR# 2XDSR4219ASeries 2XDSR

$203.34List $248.89 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/64
Flutes2
CoatingAlTiN

Description

The M.A. Ford. 2XDSR4219A is a 27/64" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDSR.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees142
Drill point length0.0650
Flute by diameter ratio5xD
Flute length2.3600
Flute typeRegular Spiral
Maximum drilling depth2.8750
Number of flutes2
Overall length4.7200
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter in15/32
Shank typeStraight
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
