M.A. Ford.

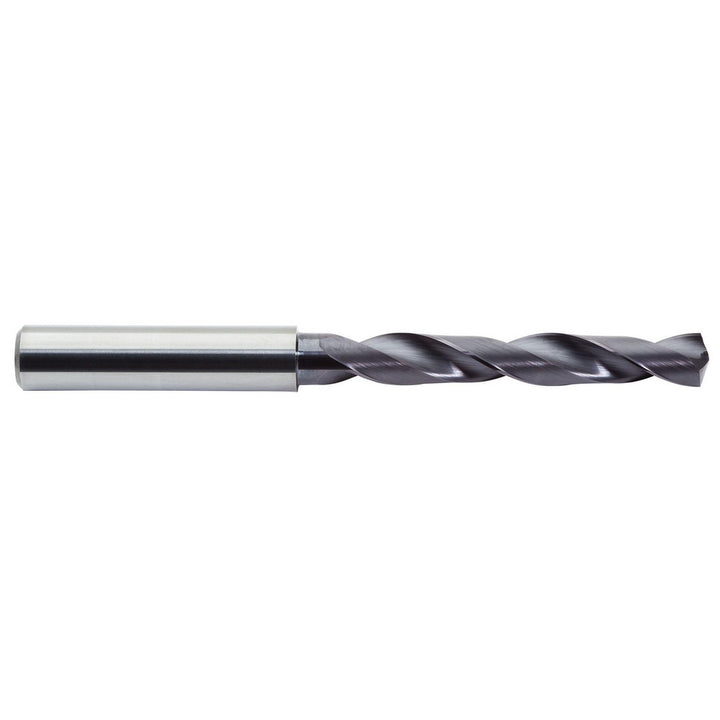

0.4527" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR4527A
MFR# 2XDSR4527ASeries 2XDSR
$272.46List $315.89
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 2XDSR4527A is a 0.4527" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for temp alloy, titanium. Series 2XDSR.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingALtima; Titanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.4527
Drill bit size range0.4000 - 0.5000
Drill point angle degrees142
Drill point length (mm)1.78
Flute by diameter ratio5xD
Flute length2.5984
Flute typeSpiral
Maximum drilling depth (mm)53.00
Number of flutes2
Overall length4.7244
Point typeStandard
Primary workpiece materialTemp Alloy; Titanium
Shank diameter0.4724
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
