M.A. Ford.

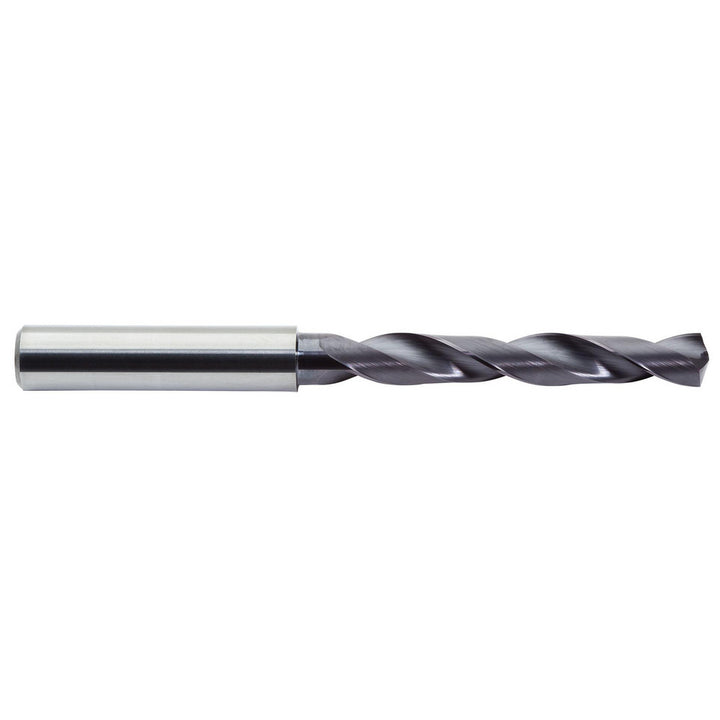

0.4606" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSR4606A
MFR# 2XDSR4606ASeries 2XDSR
$234.62List $287.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 2XDSR4606A is a 0.4606" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDSR.
Specifications
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4606
Drill bit size range0.4000 - 0.5000
Drill point angle degrees142
Drill point length (mm)1.81
Flute by diameter ratio5xD
Flute length2.5984
Flute typeRegular Spiral
Maximum drilling depth (mm)53.00
Number of flutes2
Overall length4.7244
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter0.4724
Shank typeStraight
Spiral typeRegular
StandardsISO 9001:2015 Certified
Tool performanceHigh Performance
