M.A. Ford.
0.2638" Solid Carbide Screw Machine Drill Bit, Coated, 142° point - M.A. Ford. 2XDSS2638A
MFR# 2XDSS2638ASeries 2XDSS
$112.96List $130.97
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description

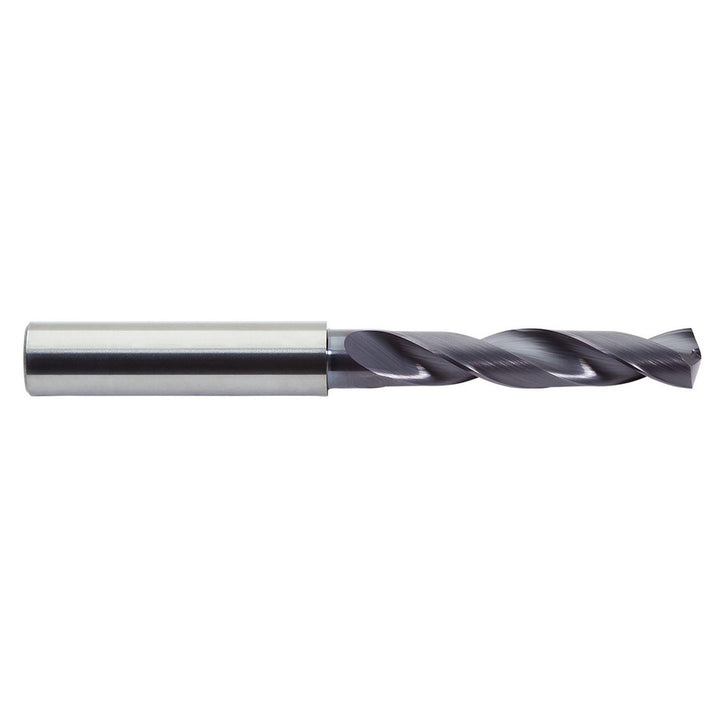

The M.A. Ford. 2XDSS2638A is a 0.2638" Solid Carbide Screw Machine drill bit with a Coated finish, 142° point. Suited for cast iron, stainless steel, steel. Series 2XDSS.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.015 mm
Drill bit size0.2638
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle142
Drill point length (mm)1.04
Flute by diameter ratio3xD
Flute length (mm)35.00
Flute typeSpiral
Maximum drilling depth (mm)28.00
Number of flutes2
Number of margins1
Overall length3.2283
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.3150
Shank length1.8504
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
