M.A. Ford.

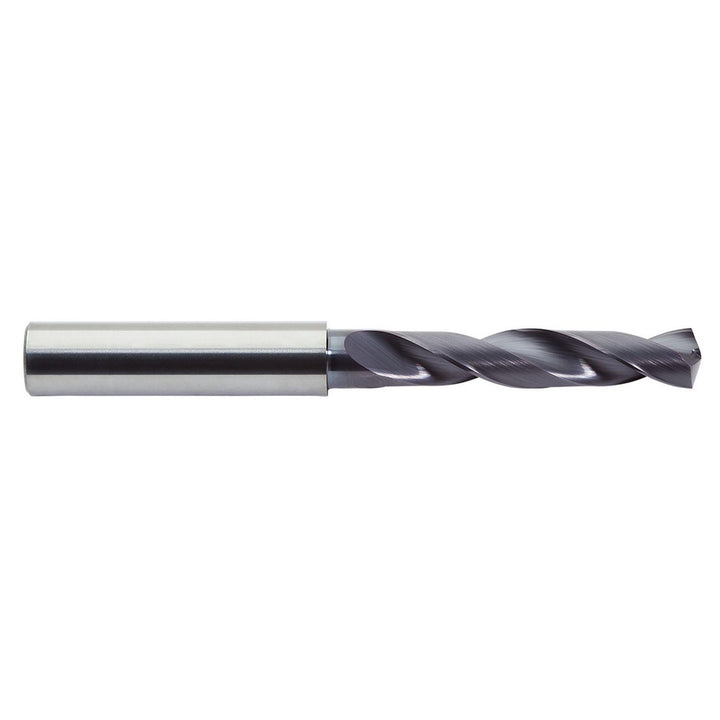

0.5118" Solid Carbide Screw Machine Drill Bit, 142° point - M.A. Ford. 2XDSS5118A
MFR# 2XDSS5118ASeries 2XDSS
$238.62List $287.00
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 2XDSS5118A is a 0.5118" Solid Carbide Screw Machine drill bit, 142° point. Suited for cast iron, stainless steel, steel. Series 2XDSS.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.5118
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle142
Drill point length (mm)2.01
Flute by diameter ratio3xD
Flute length (mm)54.00
Flute typeSpiral
Maximum drilling depth (mm)43.00
Number of flutes2
Number of margins1
Overall length4.2126
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.5512
Shank length2.0866
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
