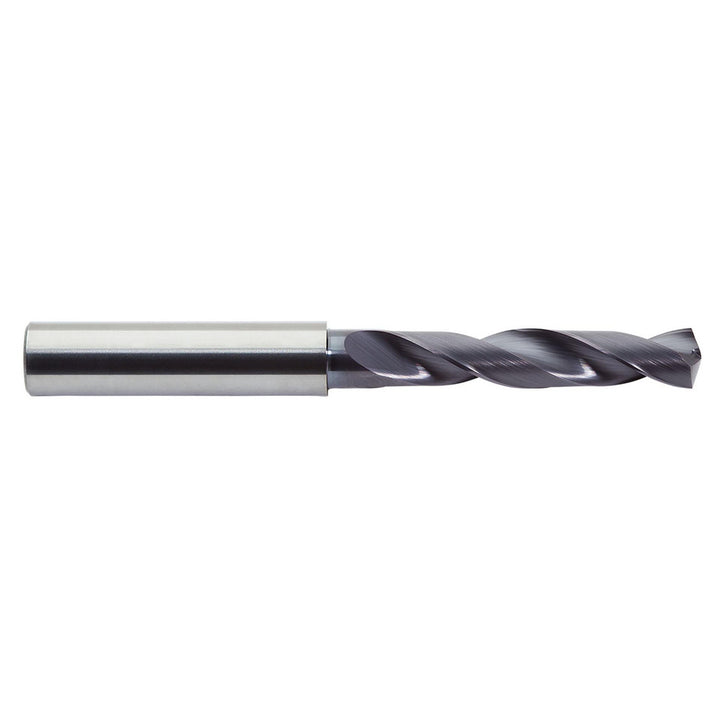

0.6693" Solid Carbide Screw Machine Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSS6693A

M.A. Ford.

0.6693" Solid Carbide Screw Machine Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDSS6693A

MFR# 2XDSS6693ASeries 2XDSS

$360.26List $440.95 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlTiN

Description

The M.A. Ford. 2XDSS6693A is a 0.6693" Solid Carbide Screw Machine drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. Series 2XDSS.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.6693
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle142
Drill point length (mm)2.63
Flute by diameter ratio3xD
Flute length (mm)63.00
Flute typeFast Spiral
Maximum drilling depth (mm)51.00
Number of flutes2
Number of margins1
Overall length4.8031
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter0.7087
Shank length2.3228
Shank typeStraight
Spiral typeFast
Tool materialSolid Carbide
