M.A. Ford.

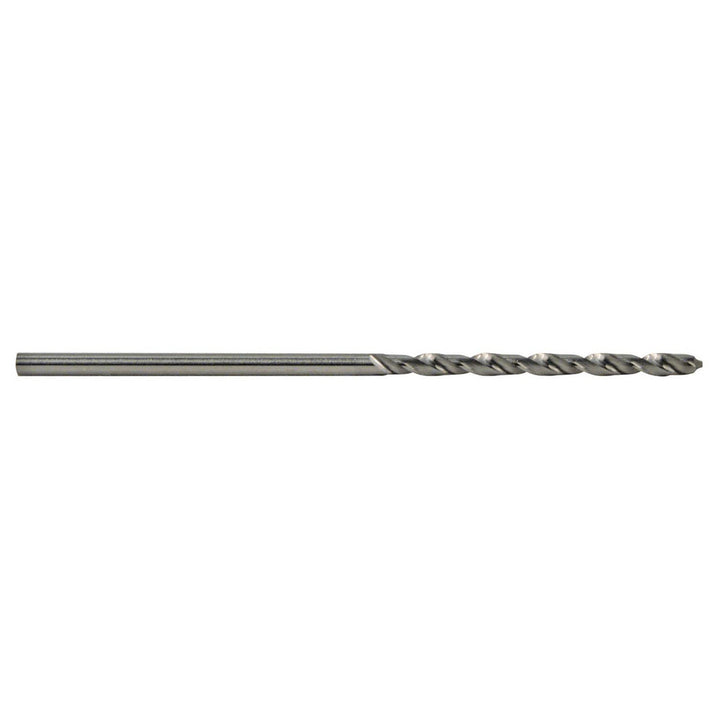

7/64" Solid Carbide Drill Bit, 118° point - M.A. Ford. 30010940
MFR# 30010940Series 300
$11.33List $14.53
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/64
Flutes2
Description
The M.A. Ford. 30010940 is a 7/64" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, steel. 5/8 flute length, 1-1/2 overall length. Series 300.
Specifications
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to +0.0000
Drill bit gradeHeavy-Duty
Drill bit size in7/64
Drill point angle118
Flute length in5/8
Helix angle35
Material applicationCast Iron; Non-Ferrous Metals; Plastics
Number of flutes2
Overall length in1-1/2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in7/64
Spiral typeFast
Tool materialSolid Carbide
Web configurationTapered
