#81 Solid Carbide Drill Bit, 130° point - M.A. Ford. 30201300

M.A. Ford.

#81 Solid Carbide Drill Bit, 130° point - M.A. Ford. 30201300

MFR# 30201300Series 302

$14.19List $18.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

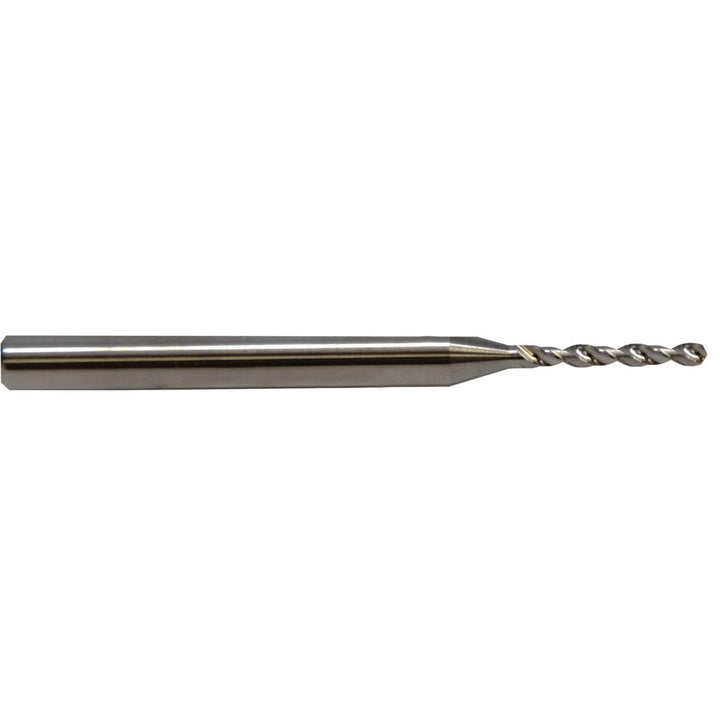

The M.A. Ford. 30201300 is a #81 Solid Carbide drill bit, 130° point. Suited for cast iron, non-ferrous metal, steel. 1-1/2 overall length. Series 302.

Specifications

Cutting directionRight Hand
Drill bit diameter tolerance-0.0003 to +0.0000
Drill bit size0.0130
Drill bit size wire#81
Drill point angle130
Flute length0.1900
Helix angle35
Material applicationAlloy Steel; Carbon Steel; Cast Iron; High Temperature Alloy; Stainless Steel; Titanium
Number of flutes2
Overall length in1-1/2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/8
Spiral typeFast
Tool materialSolid Carbide
Web configurationTapered
