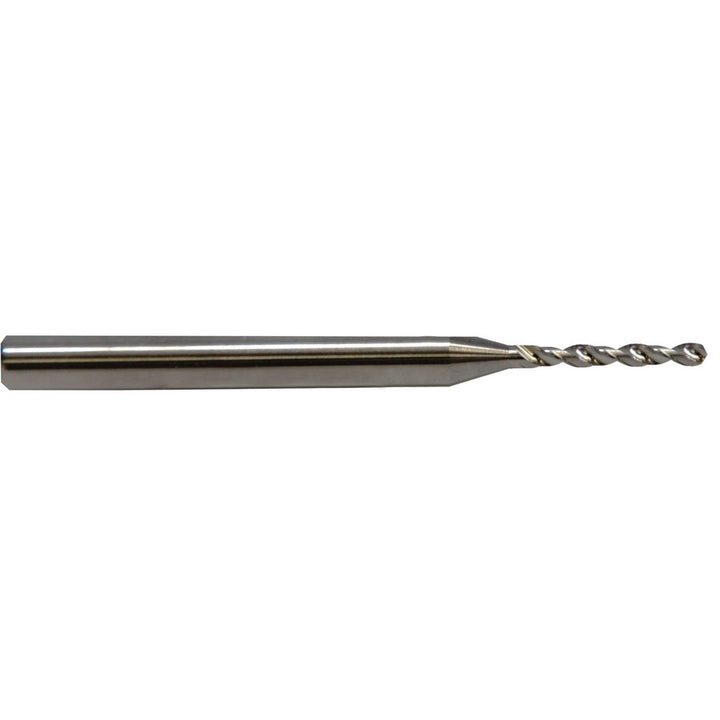

0.0197" Solid Carbide Drill Bit, 130° point - M.A. Ford. 30201972

M.A. Ford.

0.0197" Solid Carbide Drill Bit, 130° point - M.A. Ford. 30201972

MFR# 30201972Series 302

$6.88List $8.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 30201972 is a 0.0197" Solid Carbide drill bit, 130° point. Suited for cast iron, hardened steel, non-ferrous metal, stainless steel, steel. Series 302.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.013 mm
Drill bit size0.0197
Drill point angle130
Flute length (mm)8.13
Flute typeSpiral
Number of flutes2
Overall length (mm)38
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Non-Ferrous Metals; Special Alloy; Stainless Steel; Tool Steel
Shank diameter (mm)3.17
Shank typeStraight-Cylindrical
Spiral typeFast
StandardsISO 9001:2015
Tool materialSolid Carbide
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
