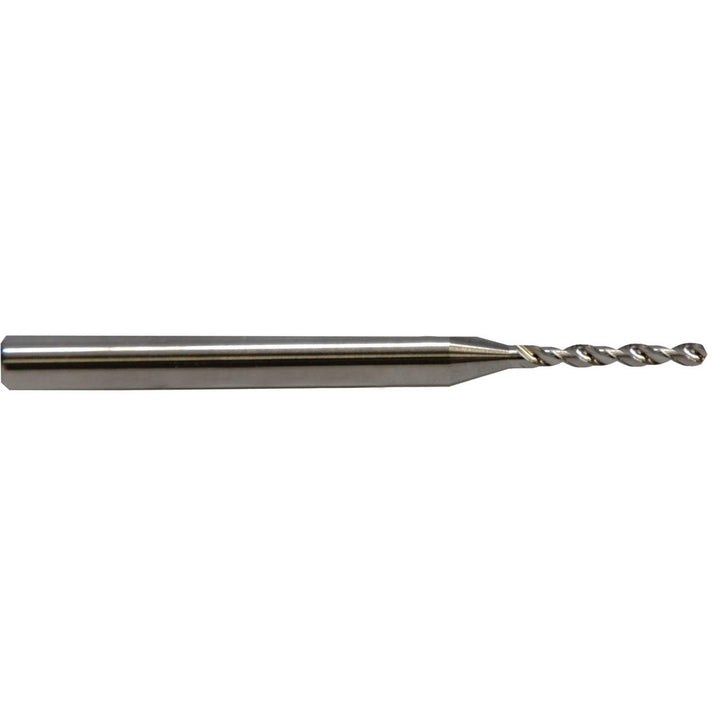

0.0354" Solid Carbide Drill Bit, 130° point - M.A. Ford. 30203540
MFR# 30203540Series 302
$6.55List $8.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 30203540 is a 0.0354" Solid Carbide drill bit, 130° point. Suited for cast iron, hardened steel, non-ferrous metal, stainless steel, steel. Series 302.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.013 mm
Drill bit size0.0354
Drill point angle130
Flute length (mm)10.16
Flute typeSpiral
Number of flutes2
Overall length (mm)38
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Non-Ferrous Metals; Special Alloy; Stainless Steel; Tool Steel
Shank diameter (mm)3.18
Shank typeStraight-Cylindrical
Spiral typeFast
StandardsISO 9001:2015
Tool materialSolid Carbide
