M.A. Ford.

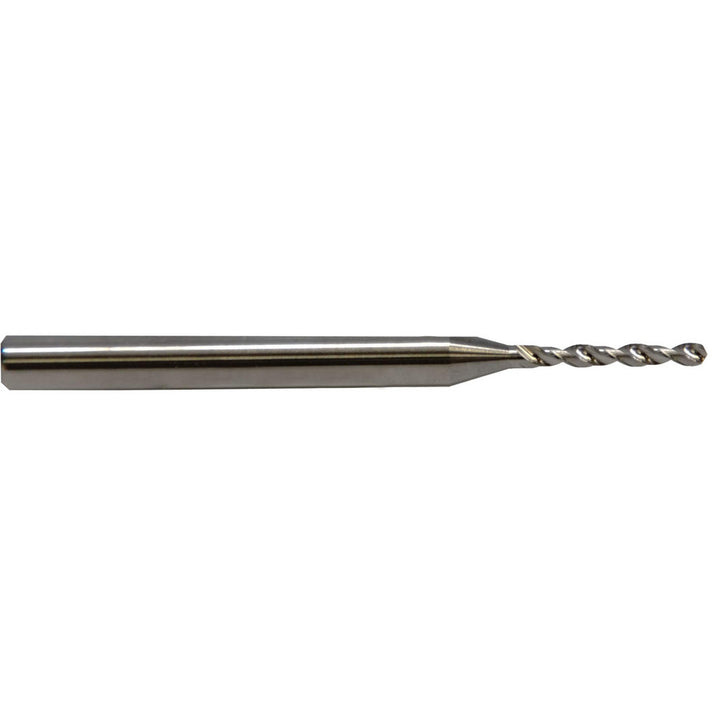

#55 Solid Carbide Drill Bit, 130° point - M.A. Ford. 30205200
MFR# 30205200Series 302
$5.48List $7.03
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 30205200 is a #55 Solid Carbide drill bit, 130° point. Suited for cast iron, non-ferrous metal, steel. 1-1/2 overall length. Series 302.
Specifications
Cutting directionRight Hand
Drill bit diameter tolerance-0.0003 to +0.0000
Drill bit size0.0520
Drill bit size wire#55
Drill point angle130
Flute length0.4000
Helix angle35
Material applicationAlloy Steel; Carbon Steel; Cast Iron; High Temperature Alloy; Stainless Steel; Titanium
Number of flutes2
Overall length in1-1/2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/8
Spiral typeFast
Tool materialSolid Carbide
Web configurationTapered
