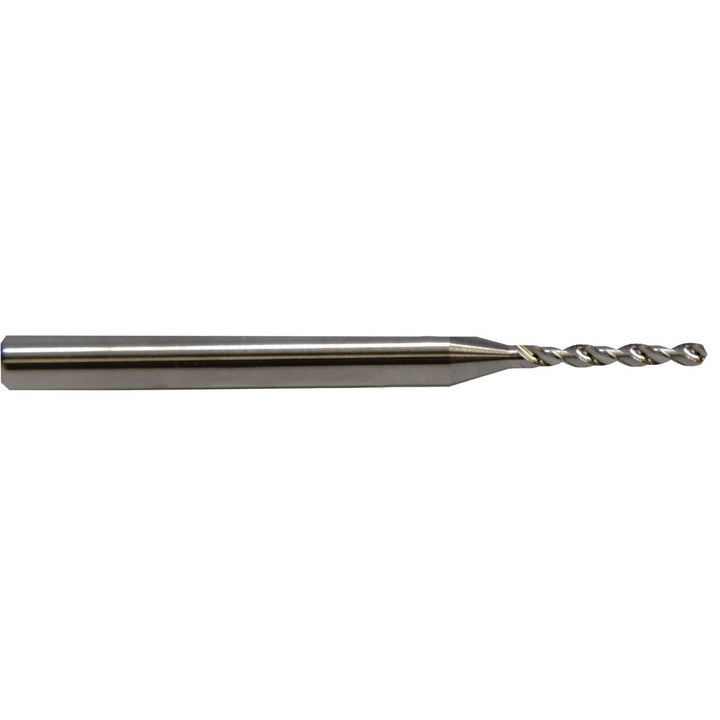

1/16" Solid Carbide Drill Bit, ALtima, 130° point - M.A. Ford. 30206250C
MFR# 30206250CSeries 302
$6.88List $8.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
CoatingALtima
Description
The M.A. Ford. 30206250C is a 1/16" Solid Carbide drill bit with a ALtima finish, 130° point. Suited for cast iron, hardened steel, non-ferrous metal, stainless steel, steel. Series 302.
Specifications
Additional informationModified Standard, Non-Returnable & Non-Cancelable
Coating finishALtima
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to (-0.0005) in
Drill bit size in1/16
Drill point angle130
Flute length0.4800
Flute typeSpiral
Number of flutes2
Overall length1.5
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Non-Ferrous Metals; Special Alloy; Stainless Steel; Tool Steel
Shank diameter in1/8
Shank typeStraight-Cylindrical
Spiral typeFast
StandardsISO 9001:2015
Tool materialSolid Carbide
