3/32" Solid Carbide Drill Bit, 130° point - M.A. Ford. 30209380

M.A. Ford.

3/32" Solid Carbide Drill Bit, 130° point - M.A. Ford. 30209380

MFR# 30209380Series 302

$7.55List $9.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/32
Flutes2

Description

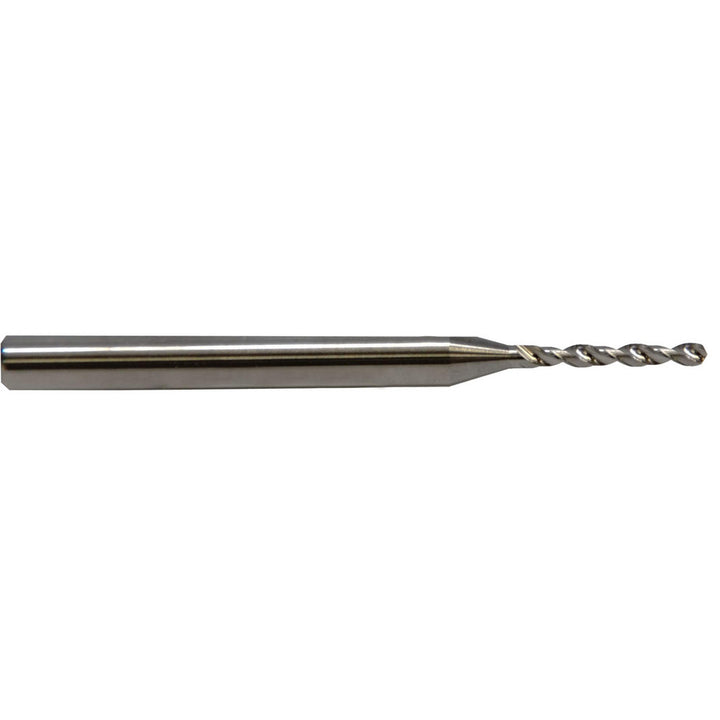

The M.A. Ford. 30209380 is a 3/32" Solid Carbide drill bit, 130° point. Suited for cast iron, non-ferrous metal, steel. 3/8 flute length, 1-1/2 overall length. Series 302.

Specifications

Cutting directionRight Hand
Drill bit diameter tolerance-0.0003 to +0.0000
Drill bit size in3/32
Drill point angle130
Flute length in3/8
Helix angle35
Material applicationAlloy Steel; Carbon Steel; Cast Iron; High Temperature Alloy; Stainless Steel; Titanium
Number of flutes2
Overall length in1-1/2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/8
Spiral typeFast
Tool materialSolid Carbide
Web configurationTapered
