M.A. Ford.
#63 Solid Carbide Drill Bit, 135° point - M.A. Ford. 30503700
MFR# 30503700Series 305
$17.76List $22.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

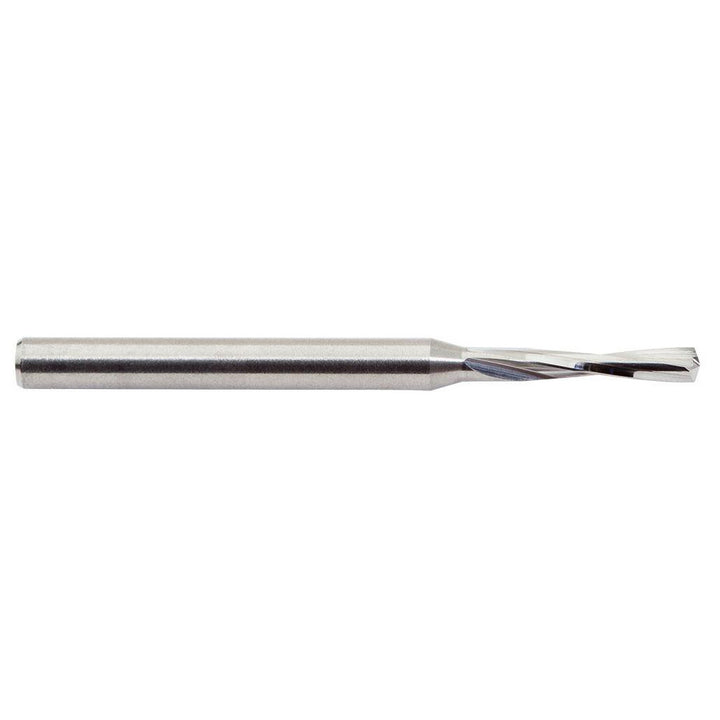

The M.A. Ford. 30503700 is a #63 Solid Carbide drill bit, 135° point. Suited for cast iron, hardened steel, non-ferrous metal, stainless steel, steel. Series 305.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0/-0.0003 in
Drill bit size0.0370
Drill bit size wire#63
Drill point angle135
Flute length0.4000
Flute typeSpiral
Number of flutes2
Overall length1.5
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in1/8
Shank typeStraight-Cylindrical
StandardsISO 9001:2015
Tool materialSolid Carbide
