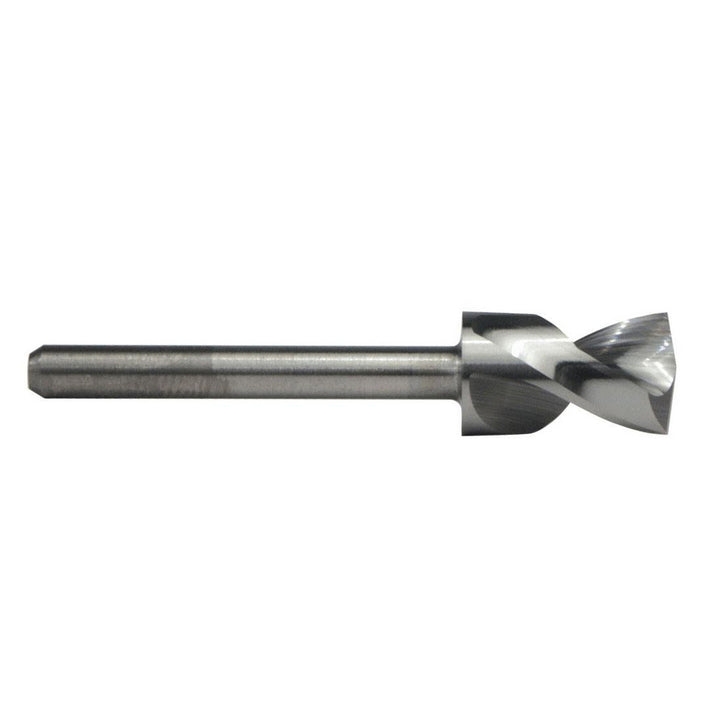

#30 Solid Carbide Drill Bit, 165° point - M.A. Ford. 30612850

M.A. Ford.

#30 Solid Carbide Drill Bit, 165° point - M.A. Ford. 30612850

MFR# 30612850Series 306

$16.01List $20.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 30612850 is a #30 Solid Carbide drill bit, 165° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series 306.

Specifications

Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to +0.0000
Drill bit size0.1285
Drill bit size wire#30
Drill point angle165
Flute length0.4800
Helix angle35
Material applicationCarbon Steel; Cast Iron; High Temperature Alloy; Stainless Steel; Titanium
Number of flutes2
Point typeSplit-Point
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in1/8
Spiral typeFast
Tool materialSolid Carbide
Web configurationTapered
