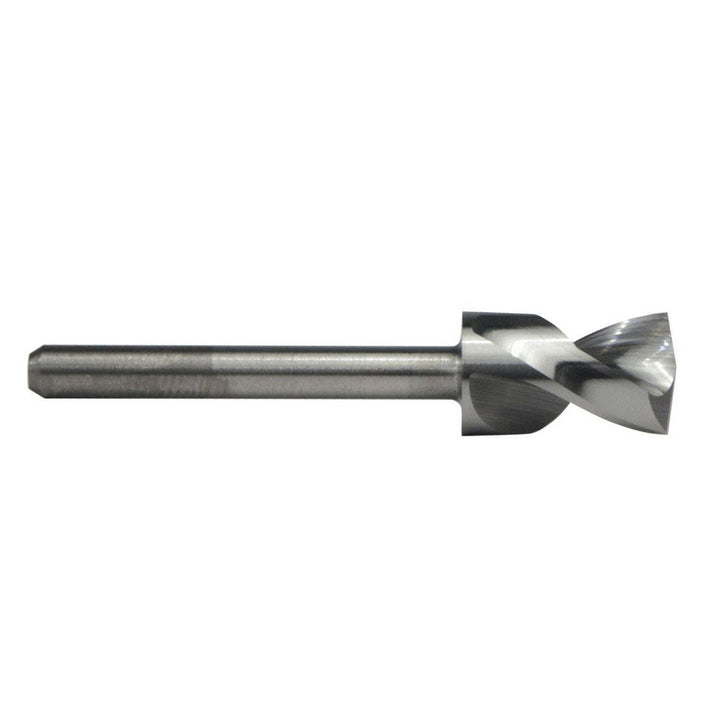

#29 Solid Carbide Drill Bit, 165° point - M.A. Ford. 30613600

M.A. Ford.

#29 Solid Carbide Drill Bit, 165° point - M.A. Ford. 30613600

MFR# 30613600Series 306

$16.01List $20.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 30613600 is a #29 Solid Carbide drill bit, 165° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. 1-1/2 overall length. Series 306.

Specifications

Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to +0.0000
Drill bit size0.1360
Drill bit size wire#29
Drill point angle165
Flute length0.4800
Helix angle35
Material applicationAlloy Steel; Carbon Steel; Cast Iron; High Temperature Alloy; Stainless Steel; Titanium
Number of flutes2
Overall length in1-1/2
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in1/8
Spiral typeFast
Tool materialSolid Carbide
Web configurationTapered
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
