M.A. Ford.
Center Drills - M.A. Ford. 40209840
MFR# 40209840Series 402
$46.32List $59.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingBright (Polished)
Description

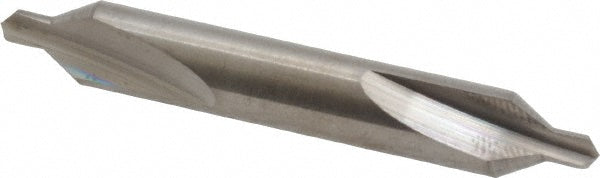

The M.A. Ford. 40209840 center drills. Suited for cast iron, hardened steel, special alloy, stainless steel, steel. Series 402.
Specifications
Aircraft styleNo
Body diameter (mm)6.30
Coating finishBright (Polished)
Cutting directionRight Hand
Cutting edge stylePlain
Drill point diameter (mm)2.50
Drill point length (mm)2.50
End typeDouble
Included angle degree60
Insertable cutter headNo
Long length toolYes
Overall length (mm)45.00
Primary workpiece materialCast Iron; Hardened Steel; Special Alloy; Stainless Steel; Steel
Secondary workpiece materialCast Iron; Hardened Steel; Special Alloy; Stainless Steel; Steel
TaperedNo
Tool applicationCountersinking; Drilling
Tool materialSolid Carbide
Trade sizeMetric
