M.A. Ford.

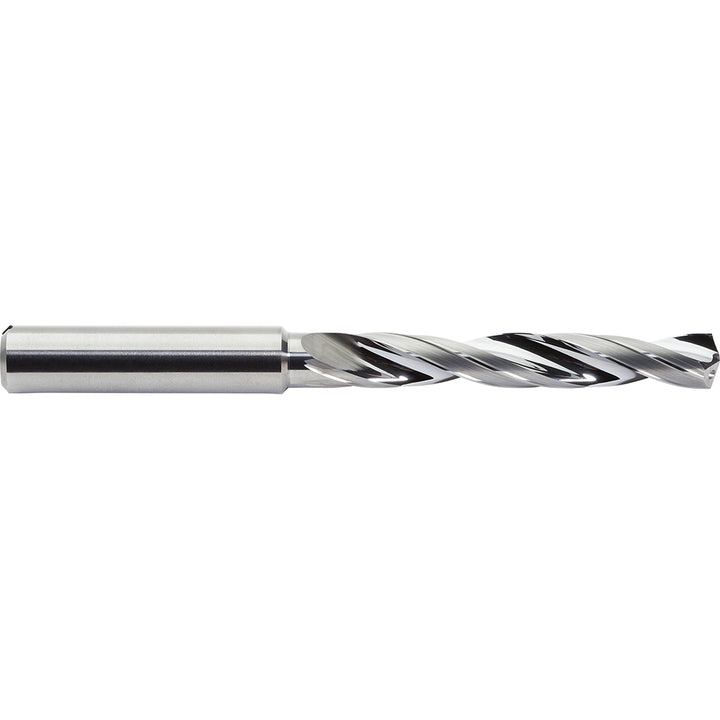

5/32" Solid Carbide Drill Bit, 142° point - M.A. Ford. CDACR1562
MFR# CDACR1562
$101.24List $123.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
Description
The M.A. Ford. CDACR1562 is a 5/32" Solid Carbide drill bit, 142° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit materialSolid Carbide
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees142
Flute by diameter ratio5xD
Flute length1.4170
Flute typeHelical
Number of flutes2
Overall length2.9100
Shank diameter0.2362
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
