M.A. Ford.

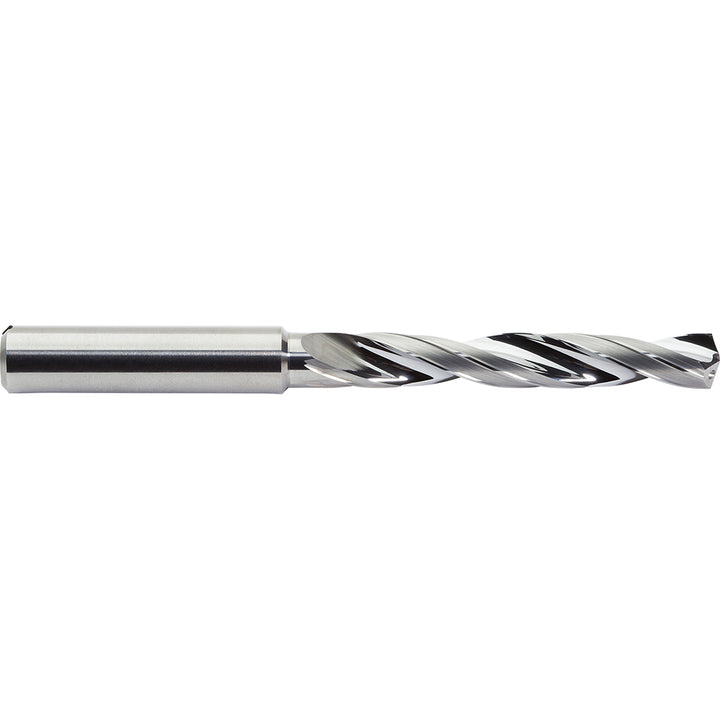

15/32" Solid Carbide Drill Bit, 142° point - M.A. Ford. CDACR4688
MFR# CDACR4688
$257.10List $314.69
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
Description
The M.A. Ford. CDACR4688 is a 15/32" Solid Carbide drill bit, 142° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit materialSolid Carbide
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees142
Flute by diameter ratio5xD
Flute length2.7950
Flute typeHelical
Number of flutes2
Overall length4.6500
Shank diameter0.4724
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
