M.A. Ford.

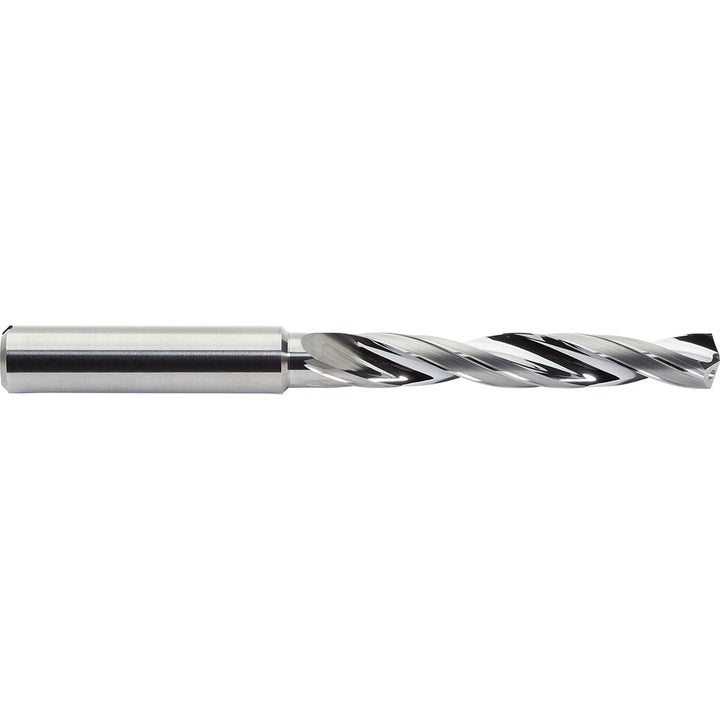

0.2008" Solid Carbide Drill Bit, 142° point - M.A. Ford. CDACRM0510
MFR# CDACRM0510
$104.75List $128.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. CDACRM0510 is a 0.2008" Solid Carbide drill bit, 142° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit materialSolid Carbide
Drill bit size0.2008
Drill bit size range0.2000 - 0.2500
Drill point angle degrees142
Flute by diameter ratio5xD
Flute length1.7323
Flute typeHelical
Number of flutes2
Overall length3.2283
Shank diameter0.2362
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
