M.A. Ford.

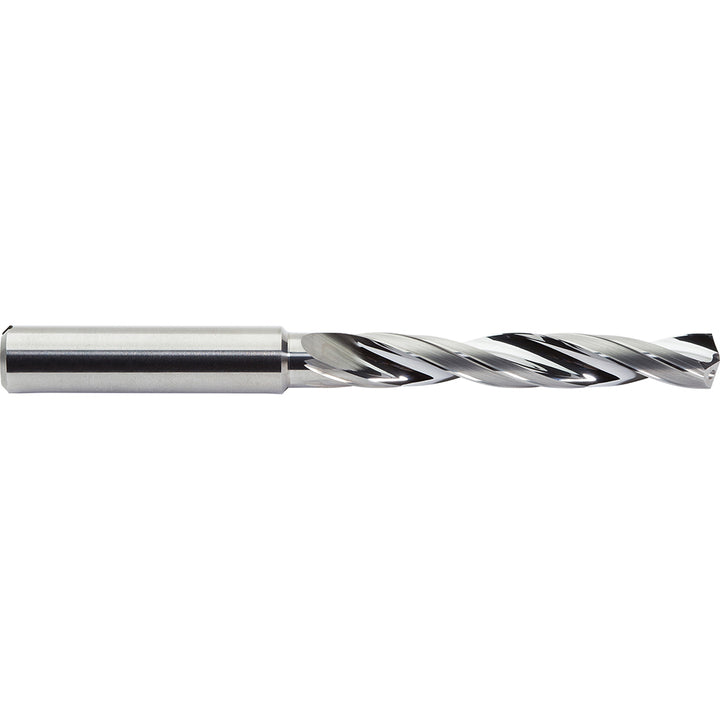

0.2520" Solid Carbide Drill Bit, 142° point - M.A. Ford. CDACRM0640
MFR# CDACRM0640
$136.03List $166.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. CDACRM0640 is a 0.2520" Solid Carbide drill bit, 142° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit materialSolid Carbide
Drill bit size0.2520
Drill bit size range0.2500 - 0.3000
Drill point angle degrees142
Flute by diameter ratio5xD
Flute length2.0866
Flute typeHelical
Number of flutes2
Overall length3.5827
Shank diameter0.3150
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
