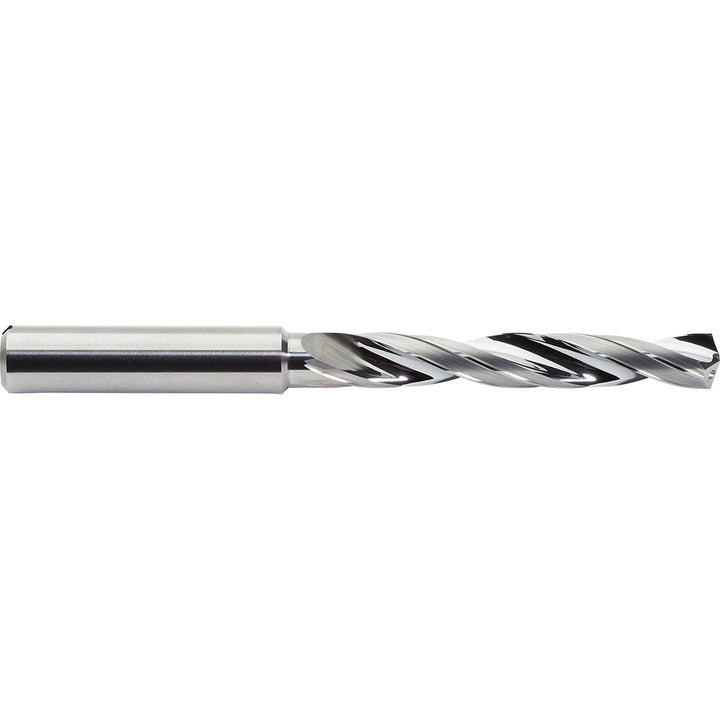

0.3780" Solid Carbide Drill Bit, 142° point - M.A. Ford. CDACRM0960
MFR# CDACRM0960
$184.24List $225.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. CDACRM0960 is a 0.3780" Solid Carbide drill bit, 142° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit finish coatingUncoated
Drill bit materialSolid Carbide
Drill bit size0.3780
Drill bit size range0.3500 - 0.4000
Drill point angle degrees142
Flute by diameter ratio5xD
Flute length2.4016
Flute typeHelical
Number of flutes2
Overall length4.0551
Shank diameter0.3937
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRight Hand
