M.A. Ford.

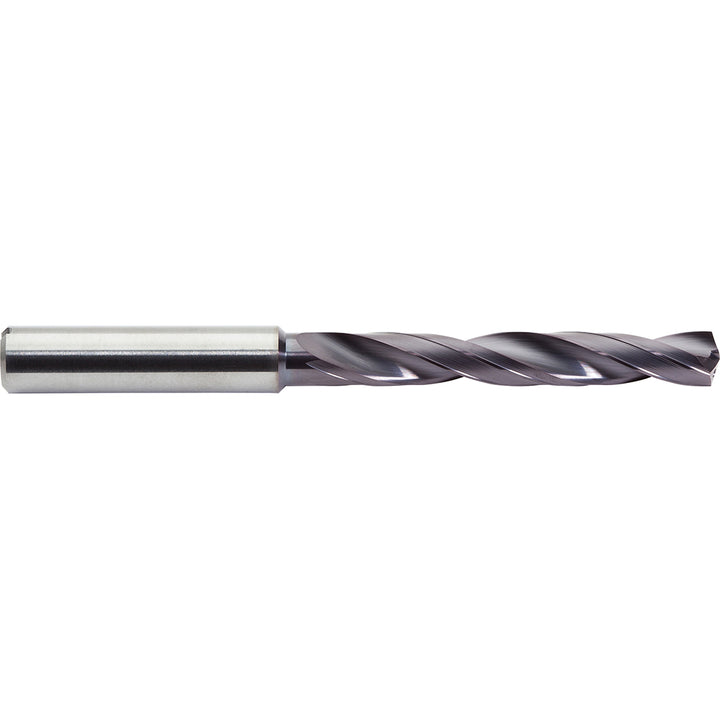

Letter C Solid Carbide Drill Bit, Proprietary, 142° point - M.A. Ford. CXDCR2420AP
MFR# CXDCR2420AP
$141.30List $172.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingProprietary
Description
The M.A. Ford. CXDCR2420AP is a Letter C Solid Carbide drill bit with a Proprietary finish, 142° point.
Specifications
Coating finishProprietary
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit materialSolid Carbide
Drill bit size0.2420
Drill bit size letterC
Drill bit size range0.2000 - 0.2500
Drill point angle degrees142
Flute by diameter ratio5xD
Flute length2.0870
Flute typeHelical
Number of flutes2
Overall length3.5800
Shank diameter in1/4
Shank typeStraight
