M.A. Ford.

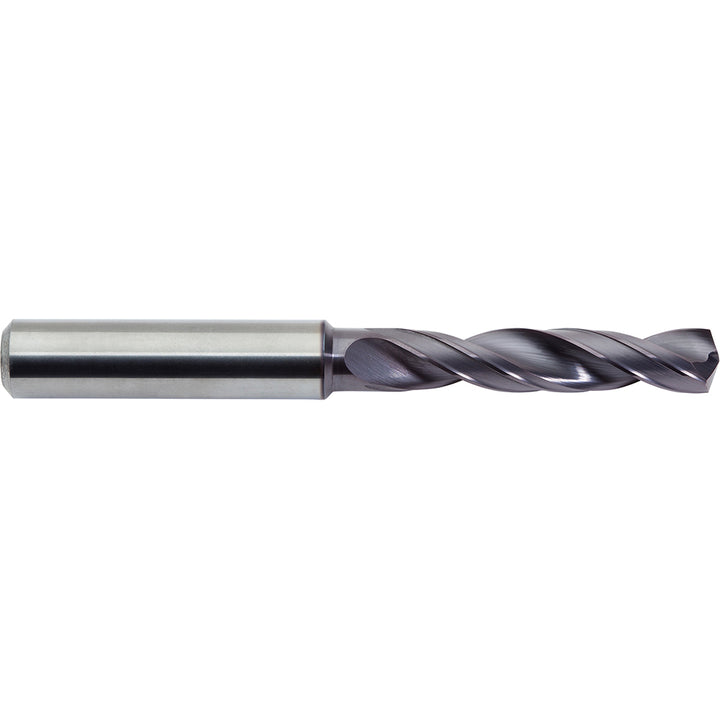

0.1968" Solid Carbide Stub Drill Bit, ALtima Plus, 142° point - M.A. Ford. CXDSS 0500AP
MFR# CXDSS 0500AP
$58.39List $67.69
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima Plus
Description
The M.A. Ford. CXDSS 0500AP is a 0.1968" Solid Carbide Stub drill bit with a ALtima Plus finish, 142° point. Suited for cast iron, stainless steel, steel, titanium.
Specifications
Coating finishALtima Plus
Coolant throughNo
Cutting directionRight Hand
Drill bit size0.1968
Drill bit size range0.1500 to 0.2000
Drill length typeStub
Drill point angle142
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Number of margins2
Overall length2.5984
Primary workpiece materialCast Iron; Stainless Steel; Steel; Titanium
Shank diameter0.1968
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
