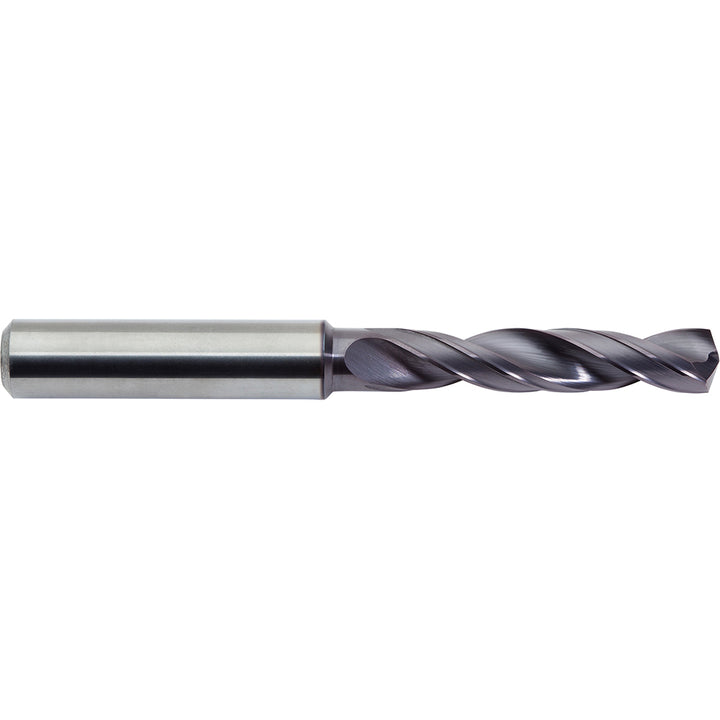

9/64" Solid Carbide Stub Drill Bit, ALtima Plus, 142° point - M.A. Ford. CXDSS1406AP
MFR# CXDSS1406AP
$69.94List $85.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
CoatingALtima Plus
Description
The M.A. Ford. CXDSS1406AP is a 9/64" Solid Carbide Stub drill bit with a ALtima Plus finish, 142° point. Suited for cast iron, stainless steel, steel, titanium.
Specifications
Coating finishALtima Plus
Coolant throughYes
Cutting directionRight Hand
Drill bit size in9/64
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle142
Flute by diameter ratio3xD
Flute typeHelical
Number of flutes2
Number of margins2
Overall length2.4400
Primary workpiece materialCast Iron; Stainless Steel; Steel; Titanium
Shank diameter0.1562
Shank typeStraight-Cylindrical
Spiral typeRight Hand
Tool materialSolid Carbide
