M.A. Ford.
0.5236" Solid Carbide Drill Bit, ALtima, 140° point - M.A. Ford. HPDCR 1330A
MFR# HPDCR 1330ASeries HPDCR
$185.00List $226.45
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima
Description

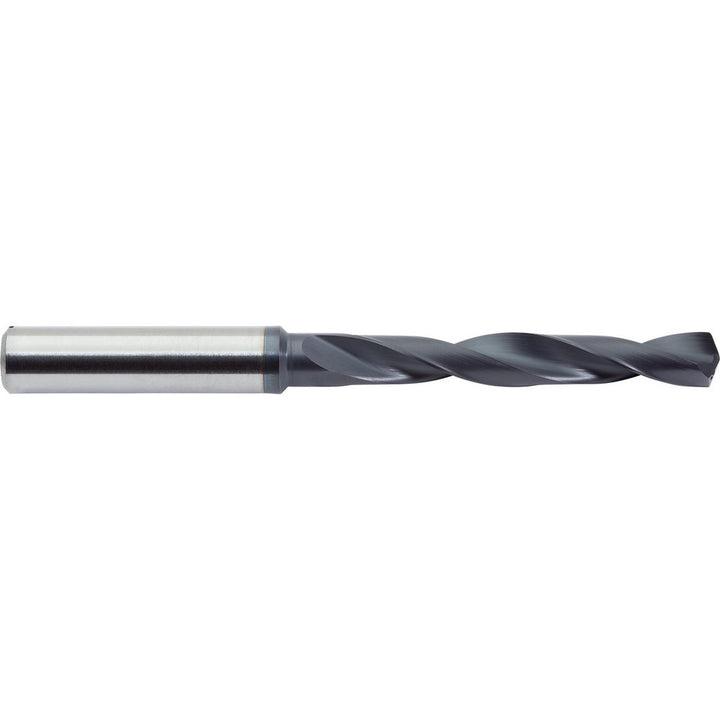

The M.A. Ford. HPDCR 1330A is a 0.5236" Solid Carbide drill bit with a ALtima finish, 140° point. Series HPDCR.
Specifications
Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.5236
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)77.00
Flute typeHelical
Number of flutes2
Overall length (mm)124.00
Shank diameter (mm)14.00
Shank typeStraight-Cylindrical
