M.A. Ford.

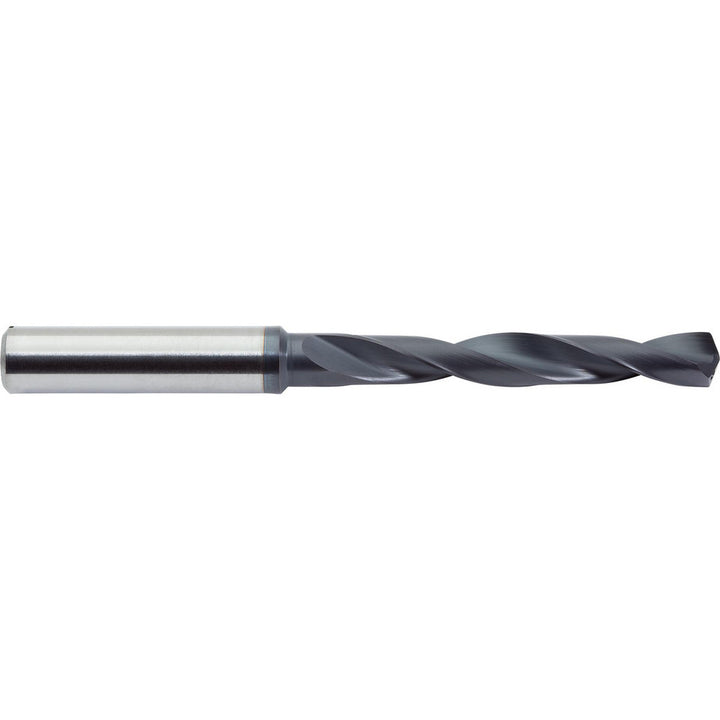

0.5354" Solid Carbide Drill Bit, AlTiN, 140° point - M.A. Ford. HPDCR 1360A
MFR# HPDCR 1360ASeries HPDCR
$139.27List $164.33
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The M.A. Ford. HPDCR 1360A is a 0.5354" Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for steel, stainless steel, cast iron. Series HPDCR.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.5354
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length3.0315
Flute typeHelical
Number of flutes2
Overall length4.8819
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter (mm)14
Shank typeStraight
