#29 Solid Carbide Drill Bit, AlTiN, 140° point - M.A. Ford. HPDCR1360A

M.A. Ford.

#29 Solid Carbide Drill Bit, AlTiN, 140° point - M.A. Ford. HPDCR1360A

MFR# HPDCR1360ASeries HPDCR

$56.21List $68.80 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlTiN

Description

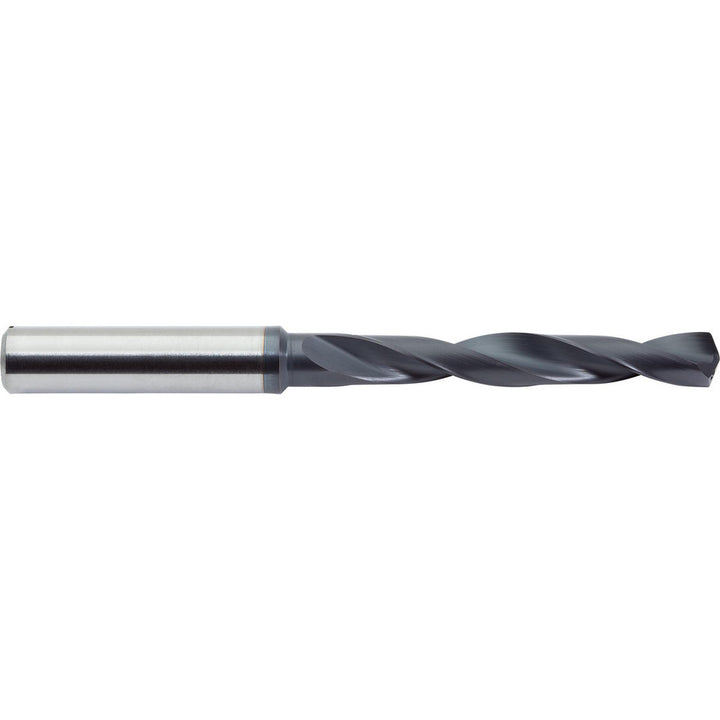

The M.A. Ford. HPDCR1360A is a #29 Solid Carbide drill bit with a AlTiN finish, 140° point. Suited for steel, stainless steel, cast iron. Series HPDCR.

Specifications

Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1360
Drill bit size range0.1000 - 0.1500
Drill bit size wire#29
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length1.1024
Flute typeHelical
Number of flutes2
Overall length2.5984
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter (mm)4
Shank typeStraight
