M.A. Ford.

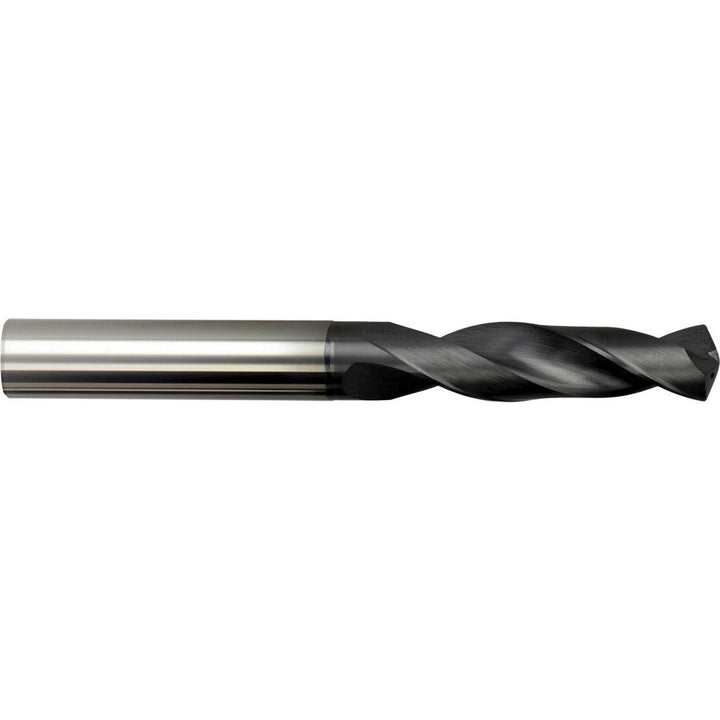

0.2756" Solid Carbide Drill Bit, AlTiN, 140° point - M.A. Ford. HPDCS 0700A
MFR# HPDCS 0700ASeries HPDCS
$62.69List $73.97
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The M.A. Ford. HPDCS 0700A is a 0.2756" Solid Carbide drill bit with a AlTiN finish, 140° point. Series HPDCS.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit size0.2756
Drill bit size range0.2500 to 0.3000
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeFast Spiral
Number of flutes2
Overall length (mm)79.00
Point typeStandard
Shank diameter (mm)8.00
Shank typeStraight
Spiral typeFast
Tool materialSolid Carbide
