M.A. Ford.

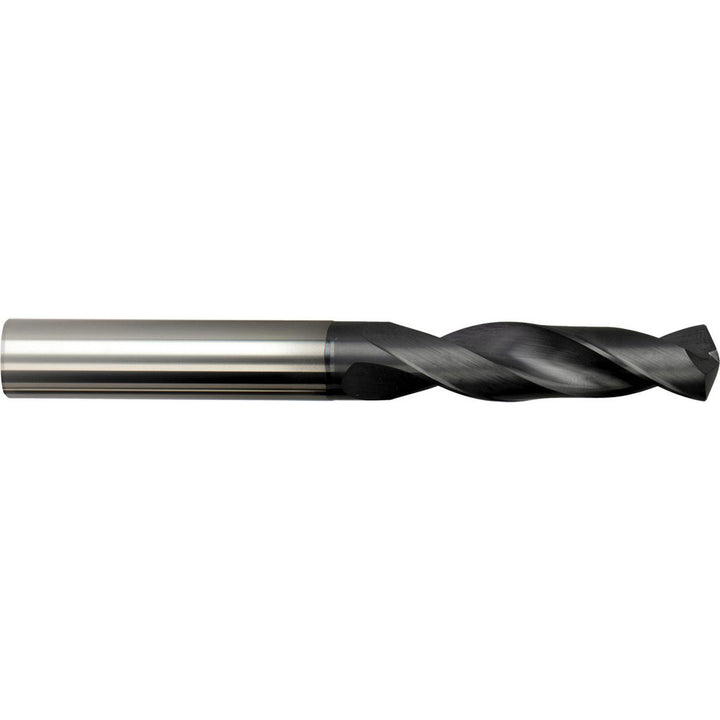

0.1575" Solid Carbide Drill Bit, ALtima, 140° point - M.A. Ford. HPDSS 0400A
MFR# HPDSS 0400ASeries HPDSS
$41.15List $50.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. HPDSS 0400A is a 0.1575" Solid Carbide drill bit with a ALtima finish, 140° point. Series HPDSS.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit finish coatingALtima
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1575
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeHelical
Number of flutes2
Overall length (mm)66.00
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
