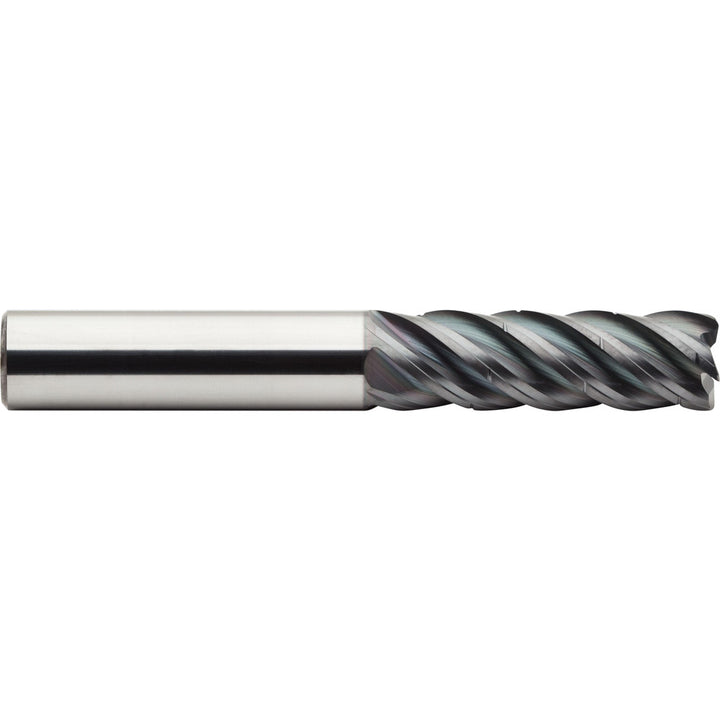

3/8" 5-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. XV5CB37534AQ

MFR# XV5CB37534AQSeries XV5CB

$131.02List $168.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

Description

The M.A. Ford. XV5CB37534AQ is a 3/8 5-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, superalloys & titanium. 1-1/4 length of cut, 3 overall length. Series XV5CB.

Specifications

CentercuttingNo

ChipbreakerYes

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in1-1/4

Length typeRegular

Manufacturers catalog numberXV5CB37534AQ

Material applicationAlloy Steel; Stainless Steel; Titanium Alloy

Material removal typeRoughing

Mill diameter in3/8

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes5

Overall length in3

PitchClose

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length in1-1/4

Shank diameter in3/8

Shank diameter tolerance+0.0000 to -0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
