Magafor
0.1440" Solid Carbide Reamer - Magafor 88860003660
MFR# 88860003660
$44.67List $54.07
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description

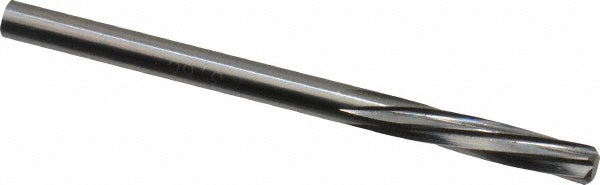

The Magafor 88860003660 is a 0.1440 Solid Carbide reamer. 2-1/4 overall length.
Specifications
Cutting directionRight Hand
Dowel pin reamerNo
Flute length in19/32
Flute typeSpiral
Number of flutes6
Overall length in2-1/4
Over under size reamerNo
Reamer diameter0.1440
Reamer diameter range0.1000 - 0.1499
Reamer diameter tolerance0.0000 to +0.0004 mm
Reamer diameter wire#27
Shank typeStraight
Spiral directionLeft Hand
Tool materialSolid Carbide
