Mahr

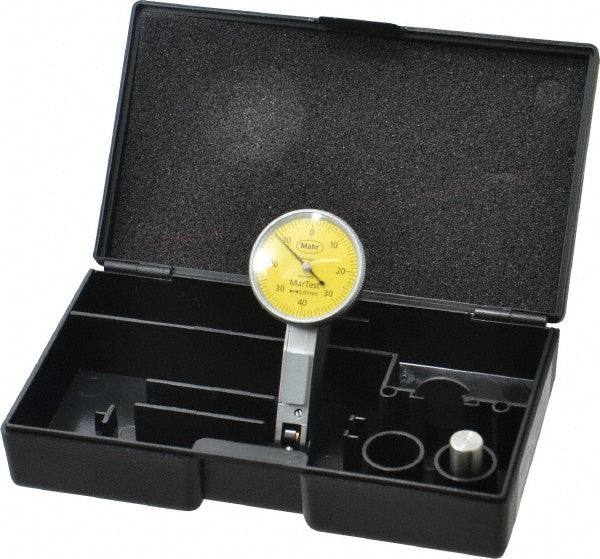

Dial Indicator - Mahr 4305200
MFR# 4305200
$124.58List $150.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mahr 4305200 is a dial indicator. Meets DIN 2270.
Specifications
AttachmentsYes
Ball diameter (mm)2.00
Bearing typeBall
Contact point length (mm)14.50
Contact point swivel angle110
Contents2 mm Stylus; 800a8 Mounting Shaft; Case; Instruction Manual; Spanner
Dial colorYellow
Dial diameter (mm)27.50
Dial graduation (mm)0.0100
Dial reading0-40-0
FeaturesAnti-Magnetic Model; Automatic Adjustment; Ball Bearing Mounted; Friction Clutch Overload Protection; High-Contrast Dial Face; Matt Chrome-Plated; Mineral Glass Viewing Panel; Sealed; Shockproof Measuring Mechanism
Force0.15
Indicator styleHorizontal
Maximum measurement (mm)0.40
Mount typeDovetail
Number of contact points included1
Range per revolution (mm)0.80
StandardsDIN 2270
StyleHorizontal
