Mahr

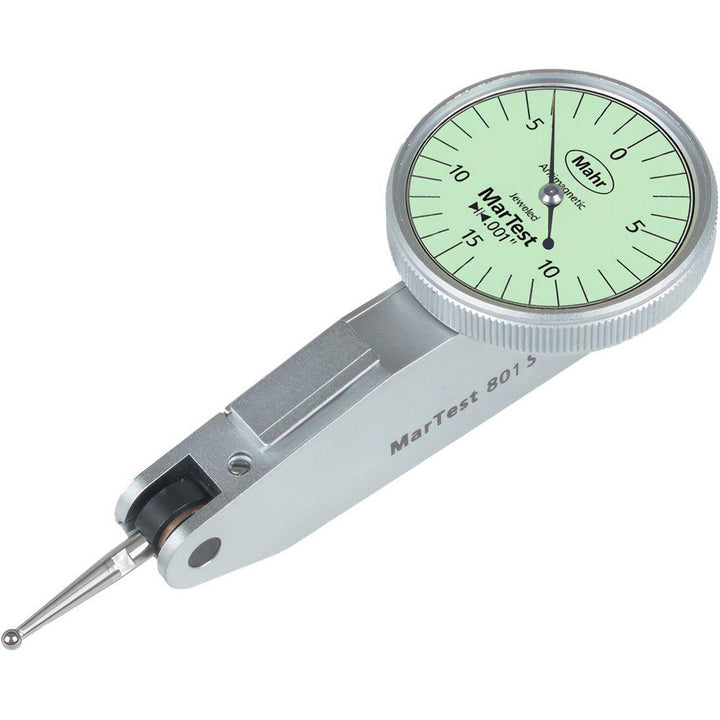

0.0150" Dial Indicator, 0.001000" grad - Mahr 4305960
MFR# 4305960
$142.00List $168.00
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mahr 4305960 is a 0.0150" dial indicator. 0.001000" graduation. Meets DIN 2270; Factory Standard.
Specifications
Accuracy0.001000
AttachmentsYes
Ball diameter0.0787
Bearing typeBall
Contact point length0.5700
Contact point swivel angle110
Contents2 mm Stylus; 800a3/8 Mounting Shaft; Case; Instruction Manual; Spanner
Dial colorGreen
Dial diameter in1-1/8
Dial graduation0.001000
Dial reading0-15-0
FeaturesAnti-Magnetic Model; Automatic Adjustment; Ball Bearing Mounted; Friction Clutch Overload Protection; High-Contrast Dial Face; Matt Chrome-Plated; Mineral Glass Viewing Panel; Sealed; Shockproof Measuring Mechanism
Indicator styleHorizontal
Maximum measurement0.0150
Minimum measurement-0.0150
Mount typeDovetail
Number of contact points included1
Range per revolution0.0300
StandardsDIN 2270; Factory Standard
StyleHorizontal
